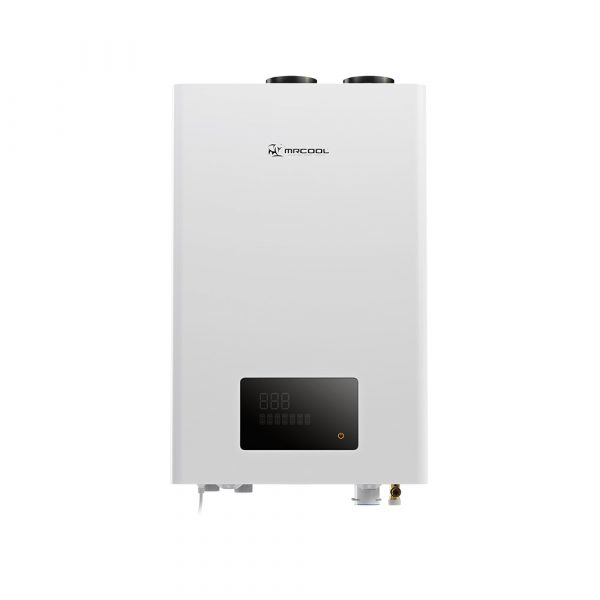

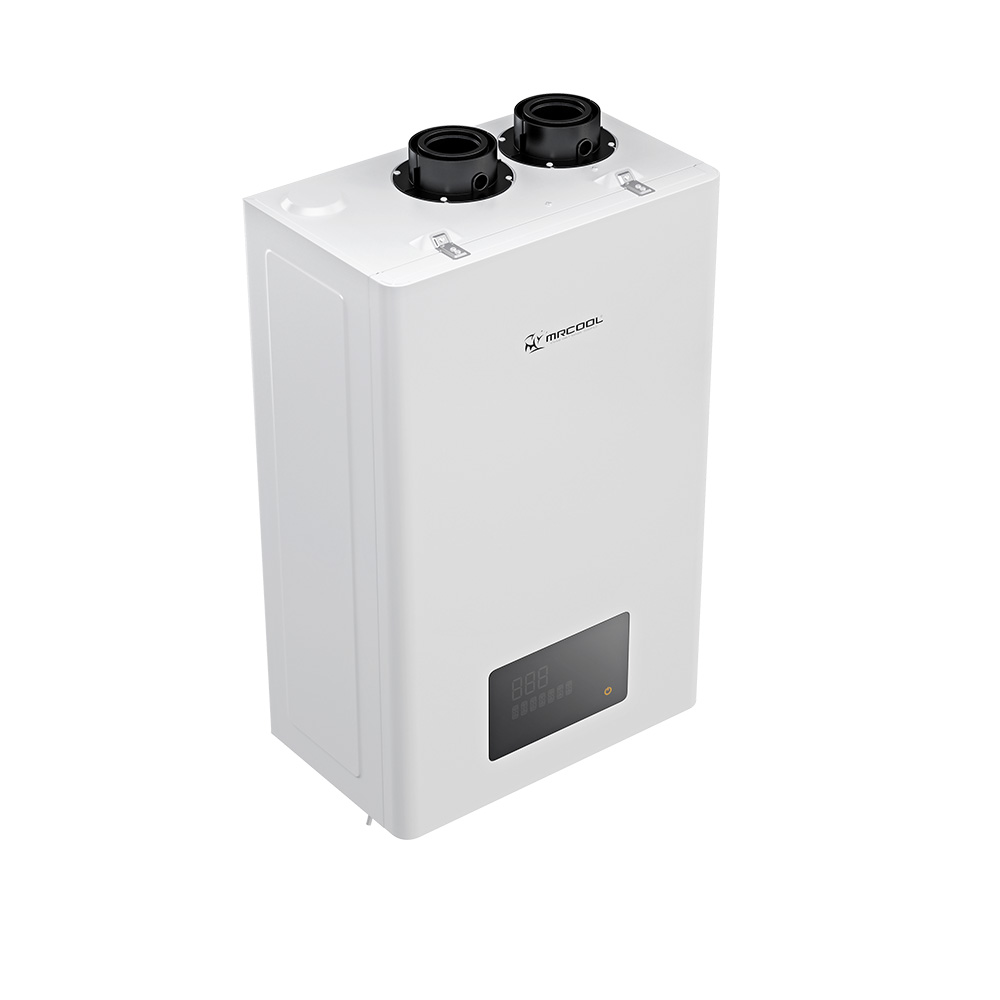

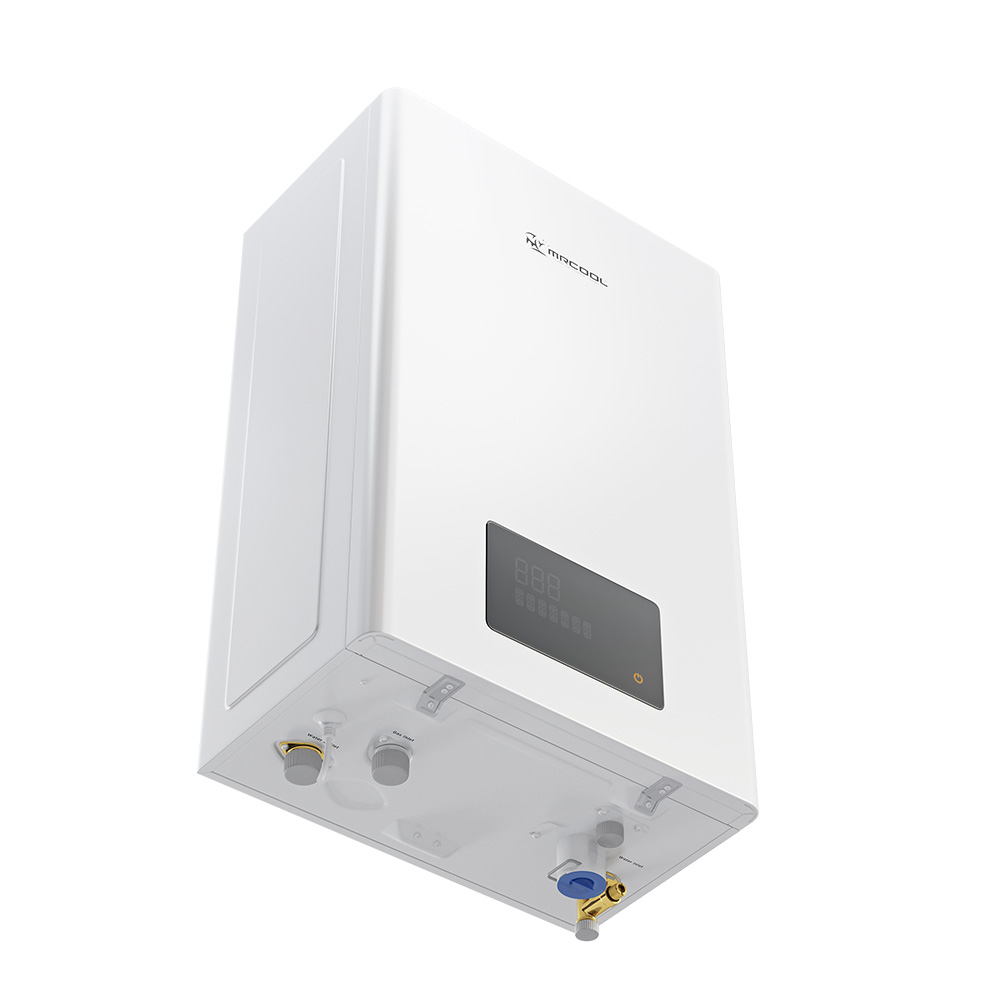

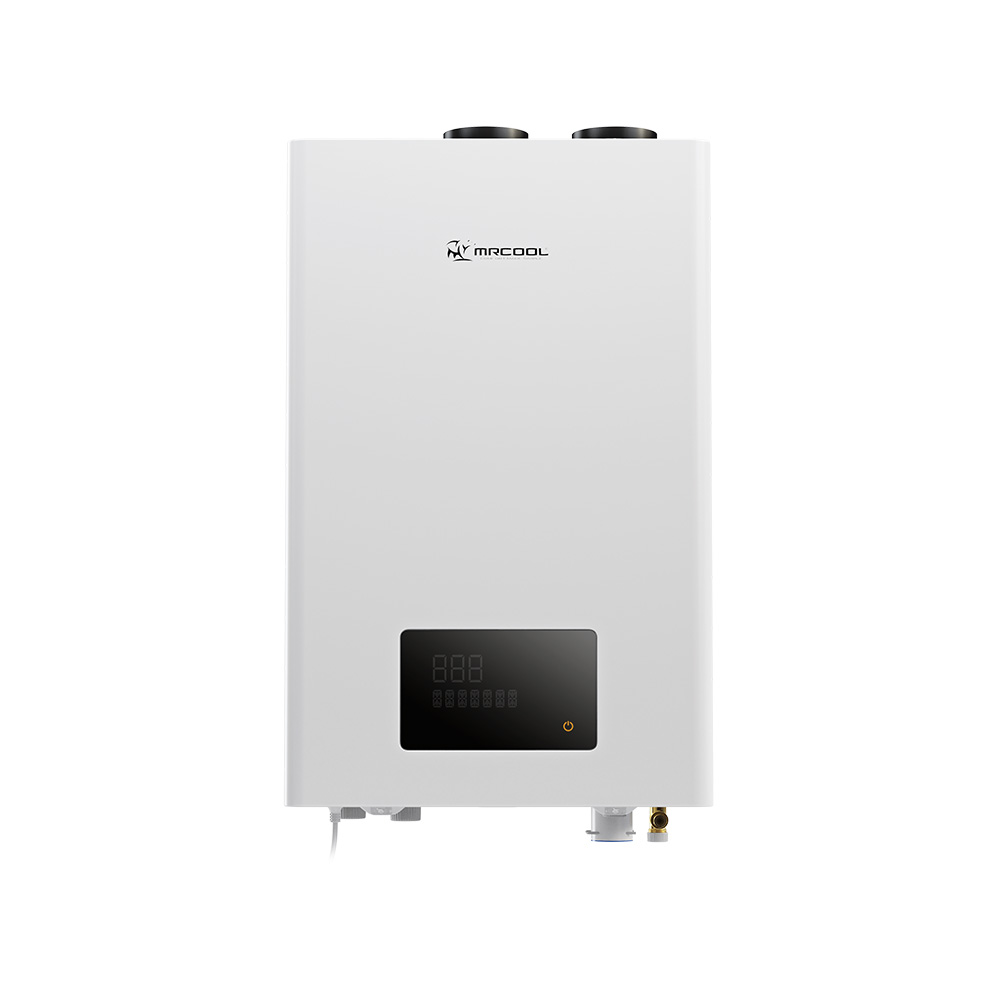

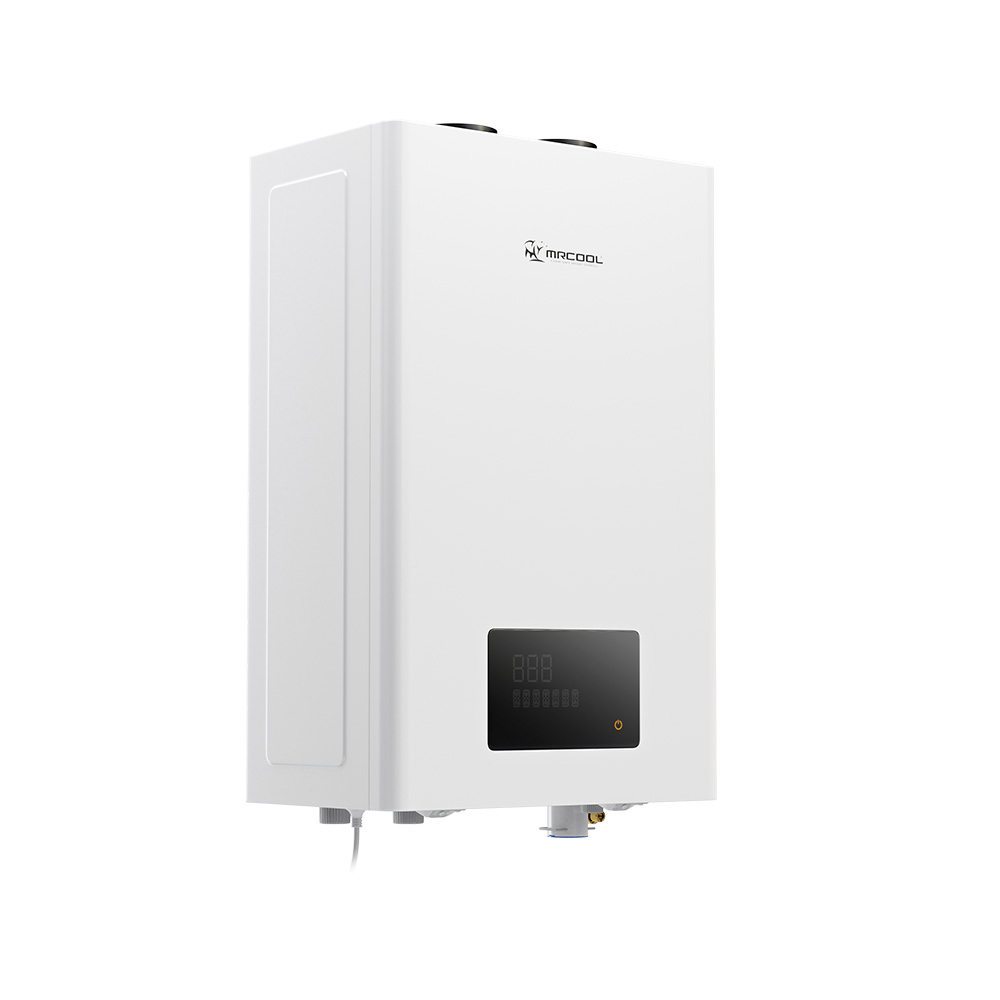

MRCOOL Tankless water heater : MHWH199NCNU

Description

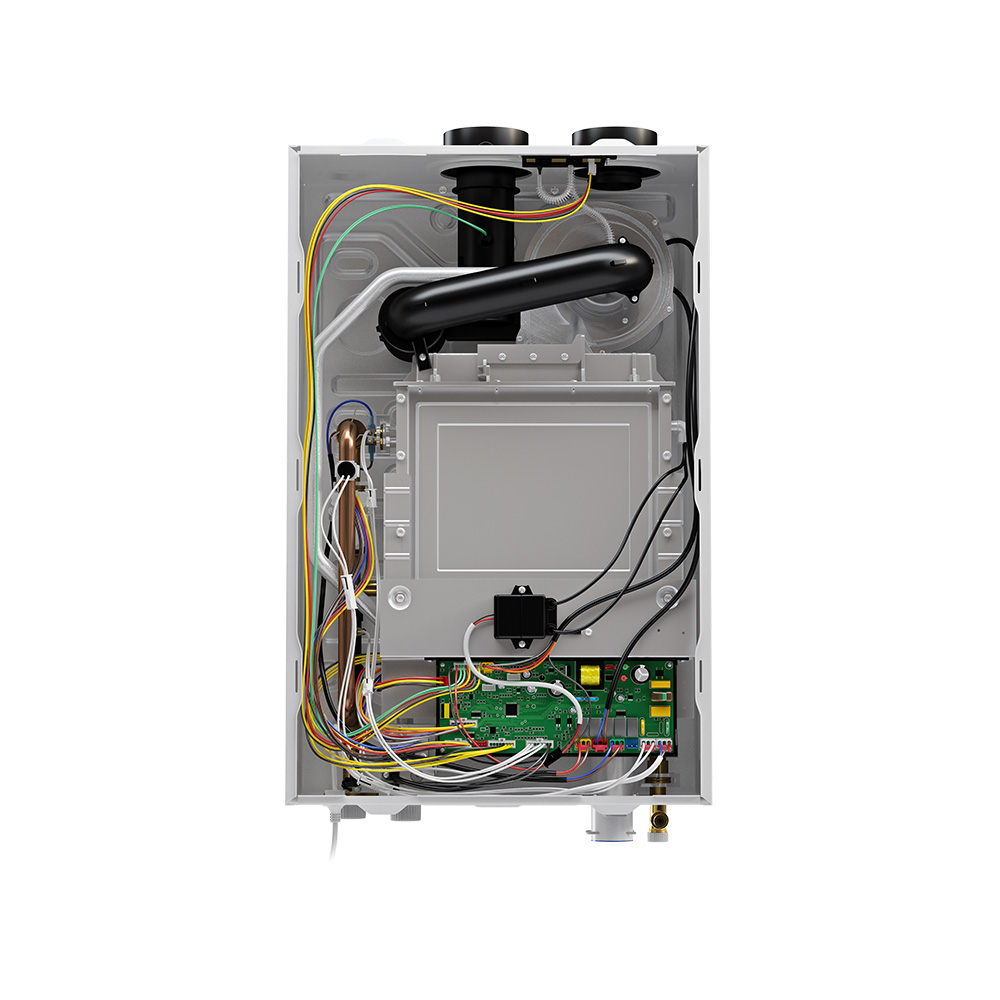

Unlike traditional water heaters, the MRCOOL® Natural Gas Tankless Water Heater provides neverending hot water to up to four bathrooms and multiple home appliances simultaneously. With a high volume and flow rate, this tankless heater is highly efficient while still being environmentally friendly. This compact and space-saving heater has a much longer lifespan thanks to the stainless steel, corrosion resistant engineering. This design has four times the corrosion resistance of copper and is lead free. One of the many high tech features of this unit is the electronic thermostatic PCB, which provides intelligent temperature control and gas flow that is automatically controlled. The EDM BLDC variable-speed fan provides stable combustion along with a smooth air flow transition. The combustion chamber is surrounded by water tubes making it a thermal insulator also. The environmentally-friendly premixed burner gives a reduction of NOx emissions, lowers the flame temperature, and reduces port-loading. You can experience the most comfortable shower experience thanks to the self-adapting temperature regulation. A large touch-screen display provides helpful information to you and your plumber about the heater’s operation. This unit must be installed by a professional and offers a 15-year heat exchanger warranty, a 5-year parts warranty, and a 5-year labor warranty. This MrCool® Natural Gas Tankless Water Heater will replace your old water heater and provide efficiency and effectiveness.

• Meets SCAQMD Standards
• UNSPSC: 52141700
• Not mobile home compatible
• Min Temp: 95 F / Max Temp: 140 F
• Wattage: 150 W (+114 W when anti-freeze module is on)
• Maximum Gallons per Minute: 8.45g/min
• Flow Rate @ 35°F Rise (gallons/min): 11.12
• Flow Rate @ 45°F Rise (gallons/min): 8.45
• Flow Rate @ 55°F Rise (gallons/min): 6.8,  Flow Rate @ 65°F Rise (gallons/min): 5.8,  92% Uniform Energy Factor (UEF),  PSI: 7-140

UPC: 810035930346
country_of_origin:

WARRANTIES:

registered_warranty:
base_warranty:5 year service
registered_parts_warranty:
base_parts_warranty: 5 year parts
registered_compressor_warranty:
base_compressor_warranty:
registered_heat_exchanger_warranty:
base_heat_exchanger_warranty: 15 year heat exchanger
registered_remote_warranty:
base_remote_warranty:
registered_labor_warranty:
base_labor_warranty:

TECHNICAL SPECIFICATIONS: (blank value means does not apply or not available)

Accessory_Type: NA
cased: NA
configuration: indoor
works_with:
seer:
seer2:
max_seer:
eer:
eer2:
eer_part_load:
cop_47:
cop_47_part_load:
hspf:
hspf2:
afue:
cfm:
tonnage:
cooling_capacity:
heating_capacity: 199000 BTU
fuel_type: natural gas
btu_input:
btu_output:
voltage: 120V   phase:
cycle: 60Hz
stage:
max_fuse_breaker:
min_circuit_ampacity:
mount_type:
color: White
color_family:
rated_load:
full_load:
max_coverage_area:
zone_capacity:
refrigerant_type:
refrigerant_volume:
decibel_rating:
decibel_rating_low:
decibel_rating_high:
air_flow_direction:
number_of_speeds:
oscillation:
number_of_burners: 1
inverter:
min_ambient_cool:
min_ambient_heat: Hot water outlet: NPT3/4in
drain_connection_size: Cold water inlet: NPT3/4in
gas_connection_size: Gas inlet: NPT3/4in
lineset_included:
line_set_length:
max_lineset_length:
lineset_fitting_type:
liquid_line_fitting:
liquid_line_size:
suction_line_fitting:
suction_line_size:
control_type:
compressor_motor_type:
condenser_fan_motor_type:
condenser_fan_motor_hp:

condenser_fan_motor_rpm:
blower_motor_type:
blower_motor_hp:
blower_motor_speeds:
blower_motor_rpm:
filter_type:
filter_size:
heat_exchanger_type:
ignition_type: Electric Ignition
vent_connector: 2 in. or 3 in. or concentric
metering_device:
auxiliary_heater_included:
auxiliary_heater_available:
auxiliary_heater_sizes:
lp_kit_included:
lp_kit_available:
low_voltage_compensation:
overload_protection: Freeze Protection: Yes
adjustable_thermostat:
fan_only_option:
quiet_mode:
sleep_mode:
auto_cool:
wifi_compatibility: no
app_compatibility: no
works_with_ios:
works_with_android:
remote_control_included:
ul_reconized:
ul_listed:

csa_listed: yes
csa_certified: yes
etl_listed:
etl_certified:
iso_certified;
leed_certified:
ashrae_compliant:
energy_star_compliant:
energy_star_certified: No
ahri_certified:
has_batteries:
contains_electronics:
contains_chemicals:
contains_aerosol:
contains_compressed_gas:
proposition_65_warning: yes
restricted_states:
net_depth: 11.03in
net_height: 26.78in
net_width: 17.33in
net_weight: 68.34 lbs
gross_depth: 13.74in
gross_height: 33.22in
gross_width: 20.27in
gross_weight: 73.85 lbs
condenser_depth:
condenser_height:
condenser_width:
condenser_weight: Heat Exchanger Weight: 24.03 lbs
air_handler_depth:
air_handler_height:
air_handler_width:
air_handler_weight:
freight_class:

COPY AND PASTE FOLLOWING MANUAL URLS:

brochure: https://mrcool.com/wp-content/dox_repo/mc-twh-br-en-01.pdf
install_manual: https://mrcool.com/wp-content/dox_repo/mc-twh-1-im-en-01.pdf
specs:
owner_manual:
remote_manual:
technical_manual:
service_manual:
warranty_doc: https://mrcool.com/wp-content/dox_repo/mc-twh-wr-en-01.pdf
