Description

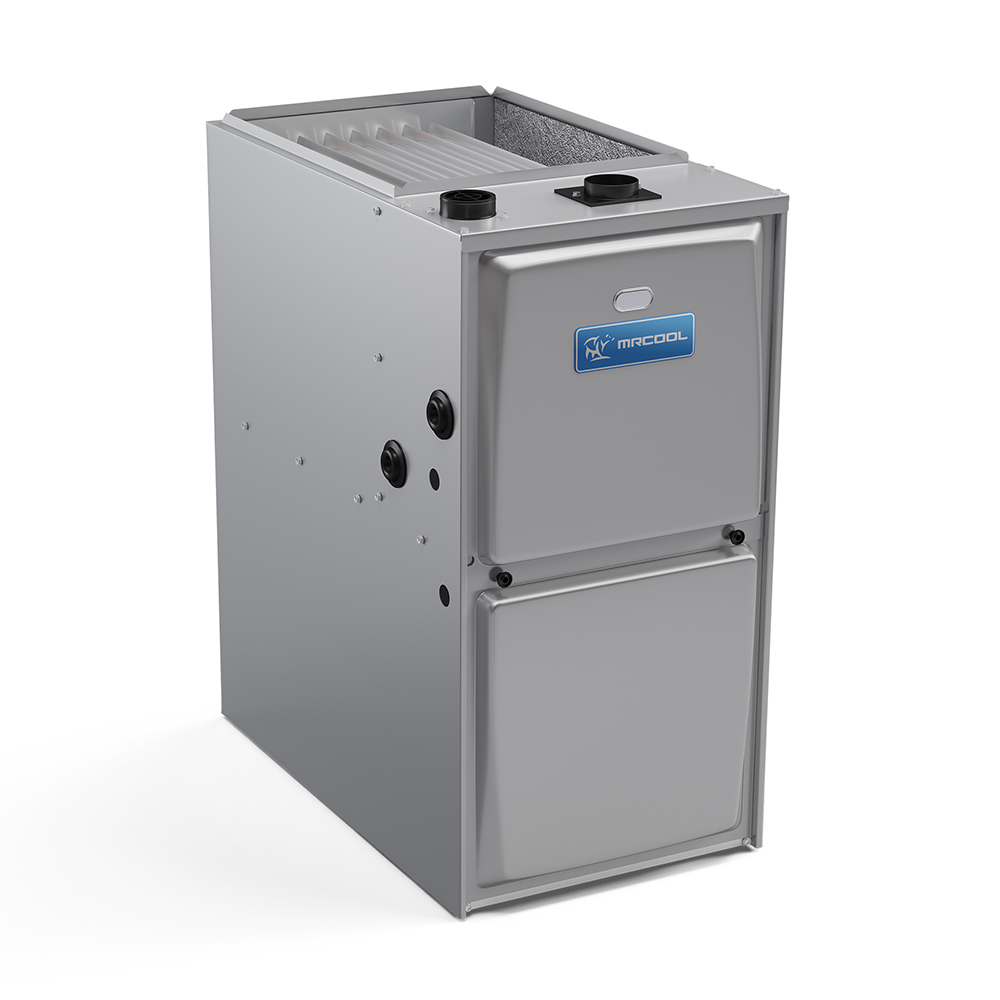

There’s nothing like your first high gas bill of the season to make you dread a long, cold winter. If that’s the boat you’re in, you need to make a change. You need to invest in a powerful, high quality, and energy efficient heater like the 95% AFUE multi-positional gas furnace by MRCOOL. Unlike a lot of other furnace models, the MRCOOL 95% AFUE furnace wastes a minimal amount of fuel. This ensures most of your dollar is spent wisely rather than wasted, and that in turn means you have to spend less of those dollars to keep your house warm all winter long. Depending on the severity of winter weather where you live, that might mean the difference between a few dozen dollars or a few hundred dollars. So don’t dread winter. Instead, choose the efficient, versatile and high quality heat of the MRCOOL. It’s also protected by a 20 year Heat Exchanger Warranty, and a 10-Year Registered Parts Warranty.
- Multi-speed high efficiency (constant torque) blower motor
- Self diagnostics saves last 10 fault codes regardless of power interruption
- Standardized widths for easy coil fit
- 10 year registered parts warranty
- 20 year heat exchanger warranty
- Aluminized steel inshot burners for smooth ignition
- Complies with California’s South Coast Air Quality
- Optional LP kit
- Easily removable slide out blower design, Constant torque motor produces consistent airflow and even temperatures, Uses up to 1/3 less energy than a fixed-speed blower, Left or right utility connections, removable floorbase for bottom return air, zero step horizontal conversion
UPC: 810512031337
country_of_origin: Mexico
WARRANTIES:
registered_warranty:10 year registered parts warranty
base_warranty:
registered_parts_warranty:
base_parts_warranty:
registered_compressor_warranty:
base_compressor_warranty:
registered_heat_exchanger_warranty: 20 year heat exchanger warranty
base_heat_exchanger_warranty: 20 year heat exchanger warranty
registered_remote_warranty:
base_remote_warranty:
registered_labor_warranty:
base_labor_warranty:
TECHNICAL SPECIFICATIONS: (blank value means does not apply or not available)
Accessory_Type: NA
cased: NA
configuration: Multi-Position
works_with:
seer:
seer2:
max_seer:
eer:
eer2:
eer_part_load:
cop_47:
cop_47_part_load:
hspf:
hspf2:
afue: 95
cfm: 1560
tonnage: 4
cooling_capacity:
heating_capacity: 88,000 BTU
fuel_type: Natural Gas
btu_input: 88000
btu_output: 85000
voltage: 120Â Â phase: 1
cycle: 60
stage: Single
max_fuse_breaker: 15
min_circuit_ampacity: 8.4
mount_type:
color: Gray
color_family: Gray
rated_load:
full_load:
max_coverage_area:
zone_capacity:
refrigerant_type:
refrigerant_volume:
decibel_rating:
decibel_rating_low:
decibel_rating_high:
air_flow_direction:
number_of_speeds:
oscillation:
number_of_burners: 8
inverter:
min_ambient_cool:
min_ambient_heat:
drain_connection_size:
gas_connection_size: 0.5
lineset_included:
line_set_length:
max_lineset_length:
lineset_fitting_type:
liquid_line_fitting:
liquid_line_size:
suction_line_fitting:
suction_line_size:
control_type:
compressor_motor_type:
condenser_fan_motor_type:
condenser_fan_motor_hp:
condenser_fan_motor_rpm:
blower_motor_type: ECM
blower_motor_hp: 3/4
blower_motor_speeds: 4 Speed
blower_motor_rpm: 895-1560
filter_type:
filter_size:
heat_exchanger_type: Aluminized steel primary, AL 29-4C Stainless steel
ignition_type: silicon nitride ignitor
vent_connector: 2 inch
metering_device:
auxiliary_heater_included:
auxiliary_heater_available:
auxiliary_heater_sizes:
lp_kit_included: No
lp_kit_available: Yes
low_voltage_compensation:
overload_protection:
adjustable_thermostat:
fan_only_option:
quiet_mode:
sleep_mode:
auto_cool:
wifi_compatibility:
app_compatibility:
works_with_ios:
works_with_android:
remote_control_included:
ul_reconized:
ul_listed:
csa_listed:
csa_certified: Yes
etl_listed:
etl_certified:
iso_certified; No
leed_certified:
ashrae_compliant:
energy_star_compliant: No
energy_star_certified: No
ahri_certified: Yes
has_batteries: No
contains_electronics: Yes
contains_chemicals: No
contains_aerosol: No
contains_compressed_gas: No
proposition_65_warning: Yes
restricted_states: No
net_depth: 28 1/2
net_height: 33
net_width: 21
net_weight: 158 lbs
gross_depth: 32.5
gross_height: 35
gross_width: 27.5
gross_weight: 158 lbs
condenser_depth:
condenser_height:
condenser_width:
condenser_weight:
air_handler_depth:
air_handler_height:
air_handler_width:
air_handler_weight:
freight_class:
COPY AND PASTE FOLLOWING MANUAL URLS:
brochure: https://mrcool.com/wp-content/dox_repo/mc-mgm-mgd-95-br-en-01.pdf
install_manual: https://mrcool.com/wp-content/dox_repo/mc-mgm-95-im-en-01.pdf
specs: https://mrcool.com/wp-content/dox_repo/mc-mgd-mgm-95-ss-en-01.pdf
owner_manual: https://mrcool.com/wp-content/dox_repo/mc-mgm-95-im-en-01.pdf
remote_manual:
technical_manual:
service_manual:
warranty_doc: https://mrcool.com/wp-content/dox_repo/mc-sig-wr-en-01.pdf
accessory_manual_1:
accessory_manual_2:
accessory_manual_3:
ahri_certs: https://mrcool.com/wp-content/dox_repo/AHRI/mc_MGM95SE090C4XA_Certs.pdf
energy_guide_certs: https://mrcool.com/wp-content/dox_repo/EnergyGuide/mc_MGM95SE090C4XA_Certs.pdf
other_certs:
misc_doc4:
