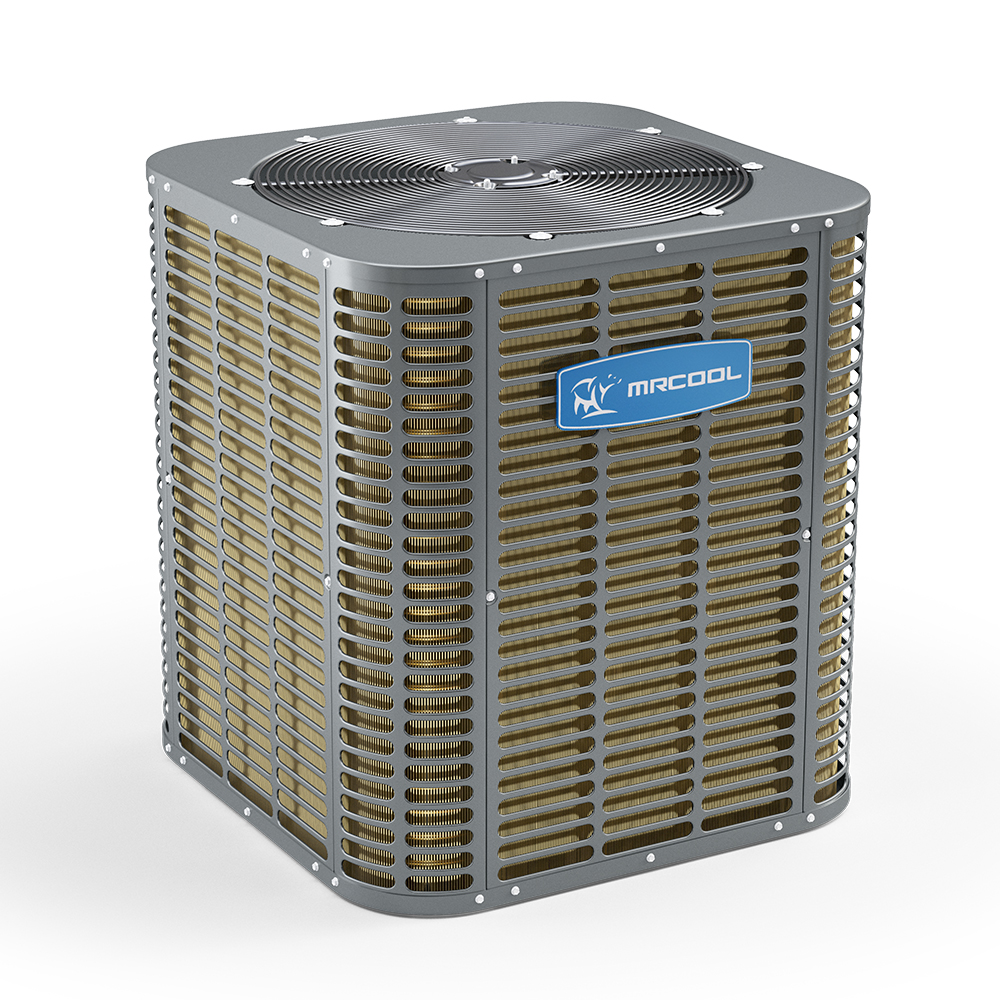

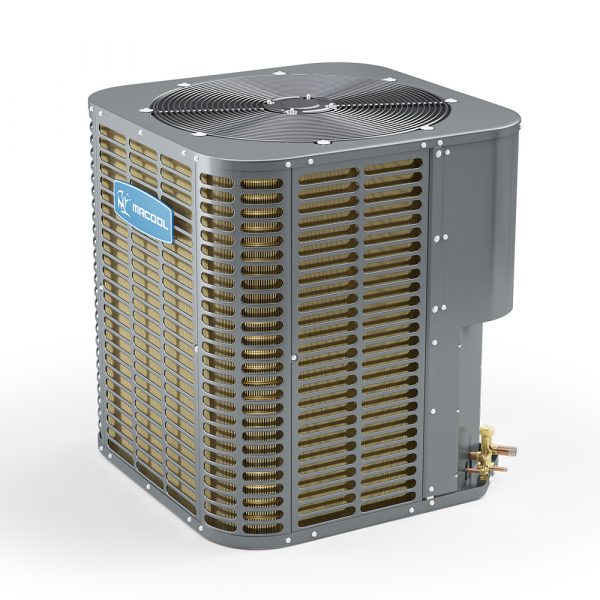

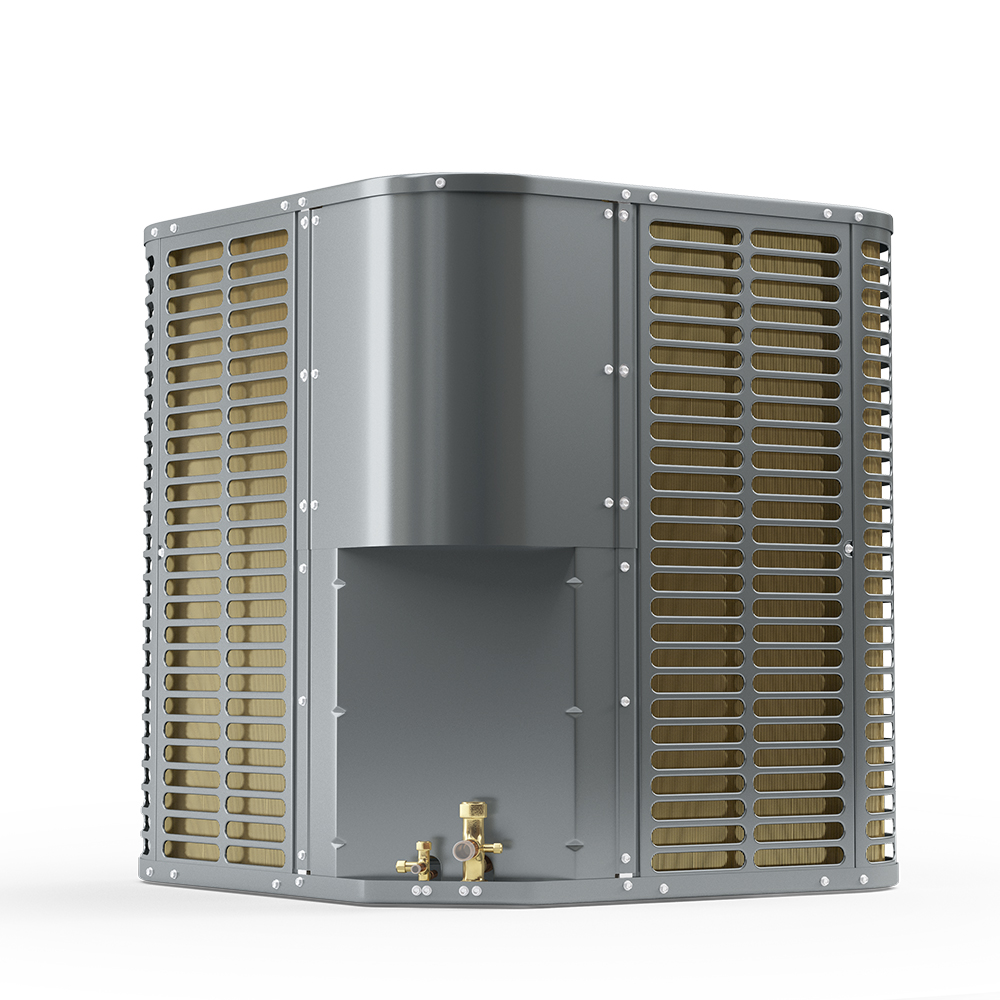

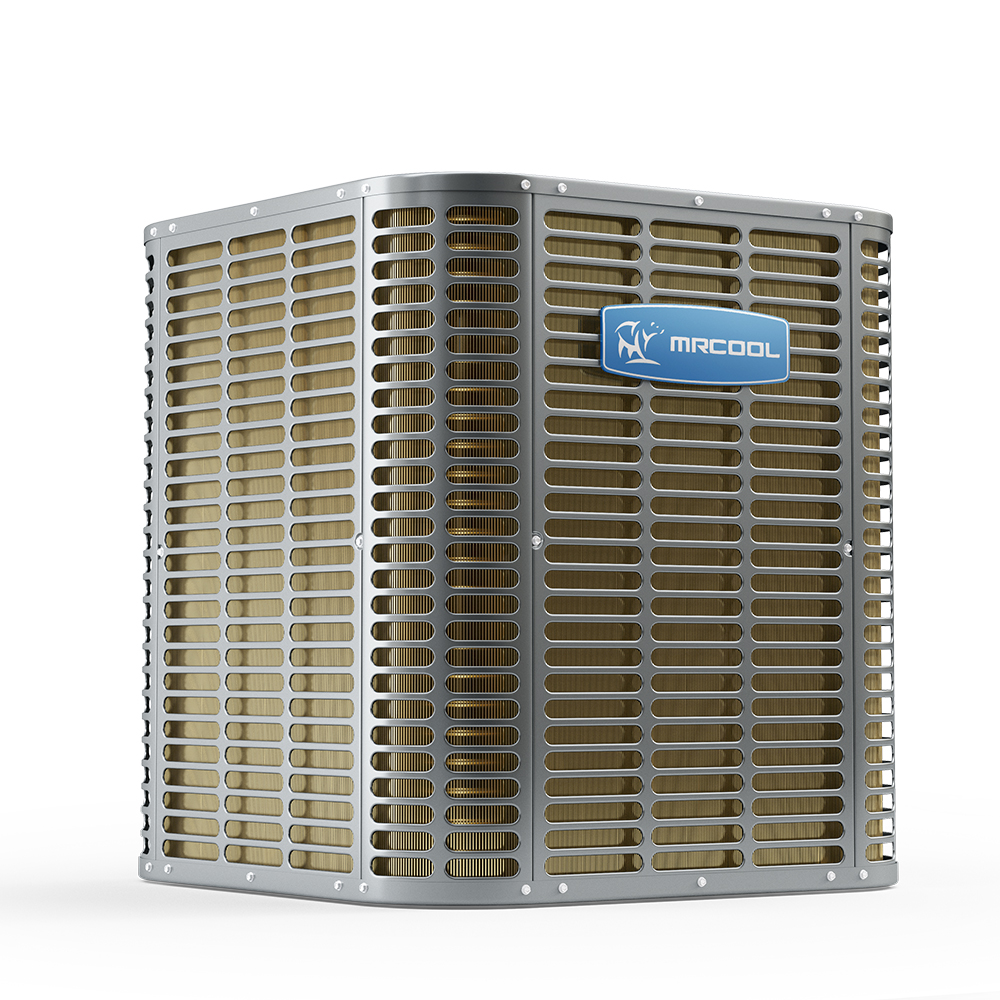

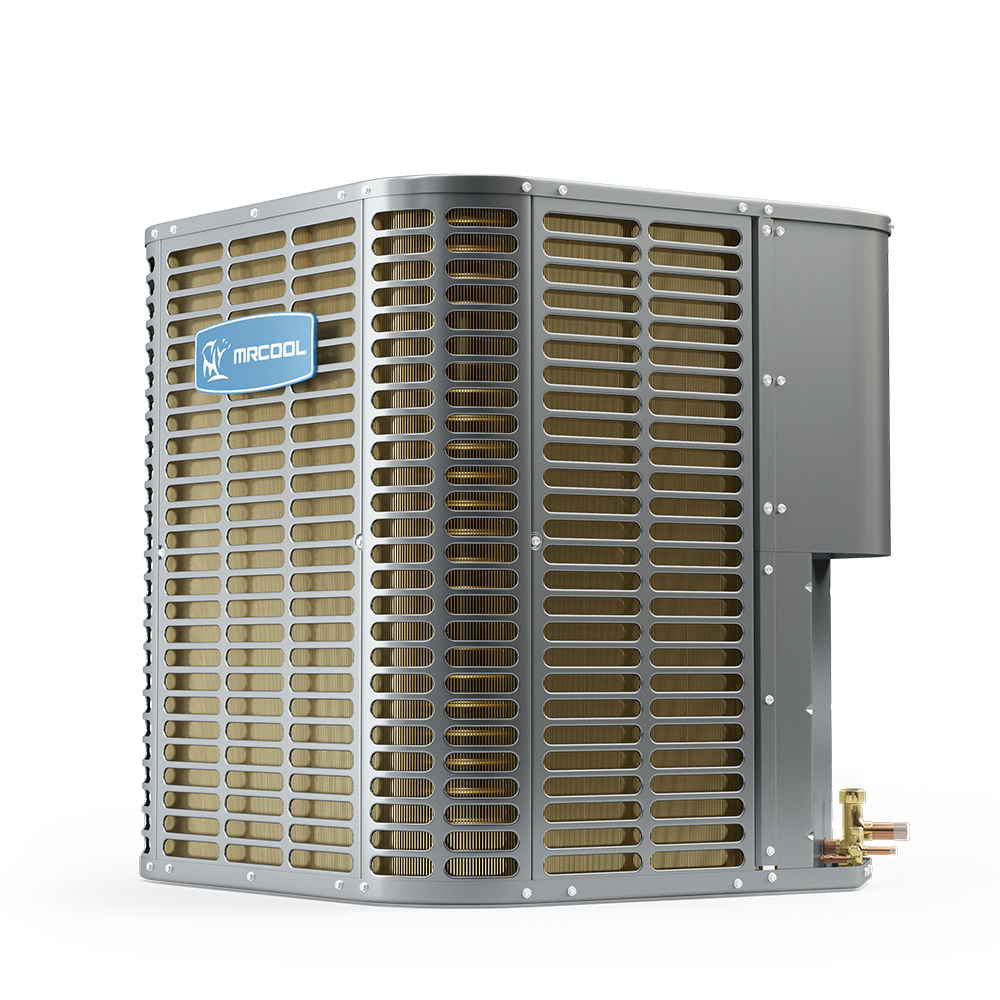

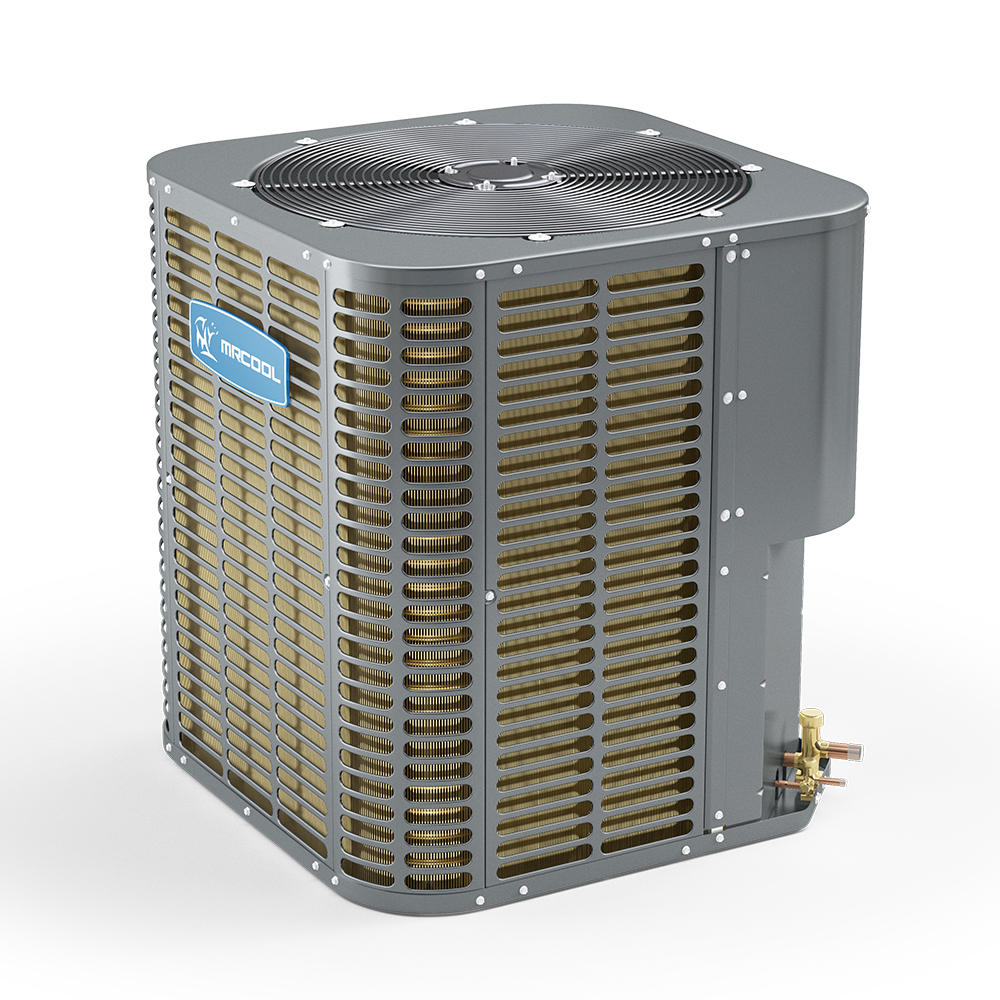

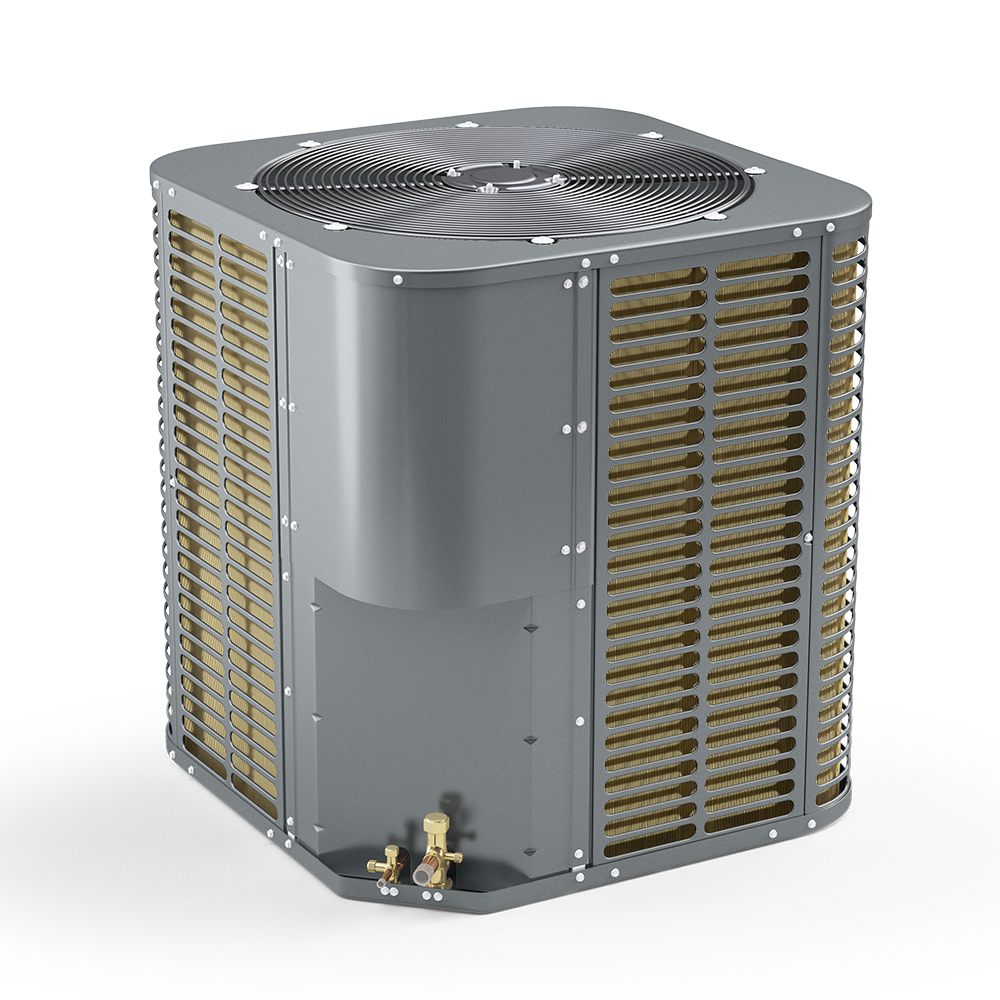

MRCOOL PRODIRECT Heat Pump Condenser : HHP15042

Description

Put your comfort first for once and get rid of that old, inefficient condenser and get the MRCOOL ProDirect 3.5 Ton 15 SEER Split System Heat Pump Condenser installed for the best comfort in your home. The highly-efficient scroll compressor helps your unit bring you comfort as fast as possible with as little wasted energy as possible. The piston flow control device that manages the refrigerant also aids in increasing the system’s overall efficiency. Your comfort is important, so you want a good amount of protection for the unit that’s providing it for you. The galvanized steel cabinet and the Gold Fin® condenser ensure that your comfort is never in danger. The gold coating is great at keeping water from the fins, meaning that rust and corrosion are never concerns. It’s also environmentally friendly, non-toxic, and it improves system efficiency by providing more insulation. The warranty that you can get once you register this AHRI rated, ETL listed unit online offer further peace of mind. The MRCOOL ProDirect 3.5 ton split system heat pump condenser will offer you years upon years of total rest and relaxation.

• Equipment should be installed by a qualified professional
• 10 Year Registered Warranty
• 15 SEER
• R-410A environmentally friendly refrigerant
• AHRI Certified & ETL listed
• Pressure and Temperature protection sensors help prevent damage
• A shape coils, constructed with copper tubing and enhanced aluminum fins.

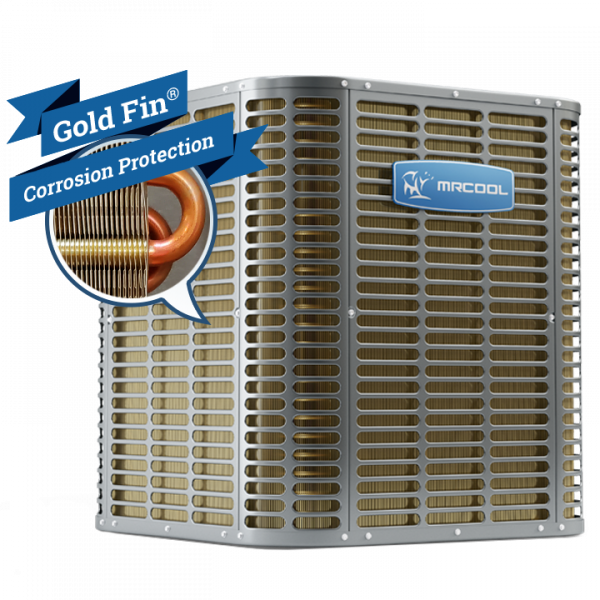

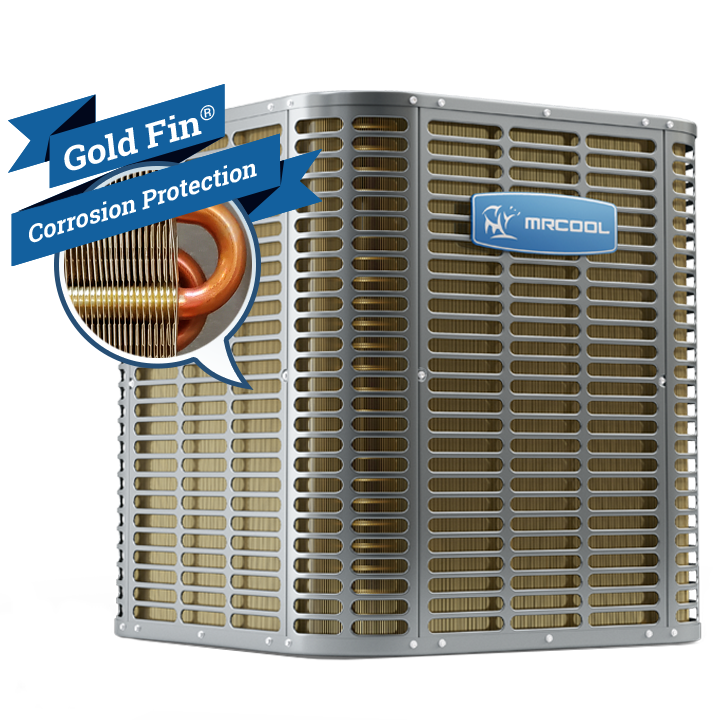

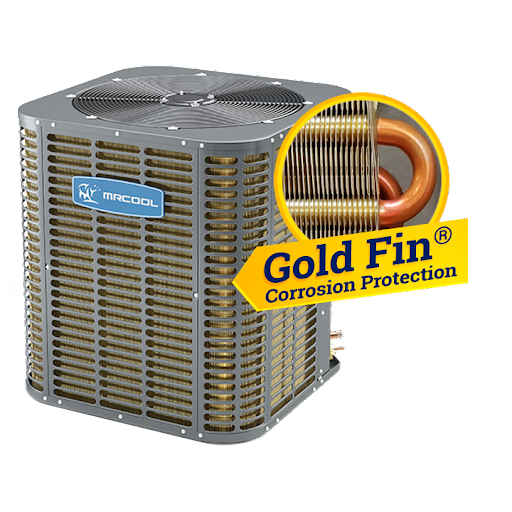

• Gold Fin® condenser: corrosion resistant – live on the coast? Don’t worry, our condenser is built to resist long term corrosion
• ,  ,  ,

UPC: 840255553865
country_of_origin:

WARRANTIES:

registered_warranty:
base_warranty:
registered_parts_warranty: 10 year parts
base_parts_warranty:
registered_compressor_warranty:
base_compressor_warranty:
registered_heat_exchanger_warranty:
base_heat_exchanger_warranty:
registered_remote_warranty:
base_remote_warranty:
registered_labor_warranty:
base_labor_warranty:

TECHNICAL SPECIFICATIONS: (blank value means does not apply or not available)

Accessory_Type: NA
cased: NA
configuration:
works_with:
seer:
seer2: 14.3
max_seer:
eer:
eer2: 11.7
eer_part_load:
cop_47:
cop_47_part_load:
hspf:
hspf2: 7.5
afue:
cfm: 3820
tonnage: 3.5
cooling_capacity: 39000
heating_capacity: 42600
fuel_type: Electric
btu_input:
btu_output:
voltage: 230 V   phase: 1
cycle: 60 Hz
stage:
max_fuse_breaker:
min_circuit_ampacity:
mount_type:
color:
color_family:
rated_load:
full_load:
max_coverage_area:
zone_capacity:
refrigerant_type:
refrigerant_volume: 148.15 oz
decibel_rating: 63 dBA
decibel_rating_low:
decibel_rating_high:
air_flow_direction:
number_of_speeds:
oscillation:
number_of_burners:
inverter:
min_ambient_cool:
min_ambient_heat:
drain_connection_size:
gas_connection_size:
lineset_included:
line_set_length:
max_lineset_length:
lineset_fitting_type:
liquid_line_fitting:
liquid_line_size:
suction_line_fitting:
suction_line_size: 3/4 in
control_type:
compressor_motor_type: scroll
condenser_fan_motor_type:
condenser_fan_motor_hp:

condenser_fan_motor_rpm:
blower_motor_type:
blower_motor_hp:
blower_motor_speeds:
blower_motor_rpm:
filter_type:
filter_size:
heat_exchanger_type:
ignition_type:
vent_connector:
metering_device:
auxiliary_heater_included:
auxiliary_heater_available:
auxiliary_heater_sizes:
lp_kit_included:
lp_kit_available:
low_voltage_compensation:
overload_protection:
adjustable_thermostat:
fan_only_option:
quiet_mode:
sleep_mode:
auto_cool:
wifi_compatibility:
app_compatibility:
works_with_ios:
works_with_android:
remote_control_included:
ul_reconized:
ul_listed:

csa_listed:
csa_certified:
etl_listed: Yes
etl_certified:
iso_certified;
leed_certified:
ashrae_compliant:
energy_star_compliant:
energy_star_certified:
ahri_certified: Yes
has_batteries:
contains_electronics:
contains_chemicals:
contains_aerosol:
contains_compressed_gas:
proposition_65_warning: Yes
restricted_states:
net_depth: 29-1/7 in
net_height: 32-7/8 in
net_width: 29-1/7 in
net_weight: 207 lbs
gross_depth: 29-9/10 in
gross_height: 34-2/5 in
gross_width: 29-9/10 in
gross_weight: 207 lbs
condenser_depth:
condenser_height:
condenser_width:
condenser_weight:
air_handler_depth:
air_handler_height:
air_handler_width:
air_handler_weight:
freight_class:
