Description

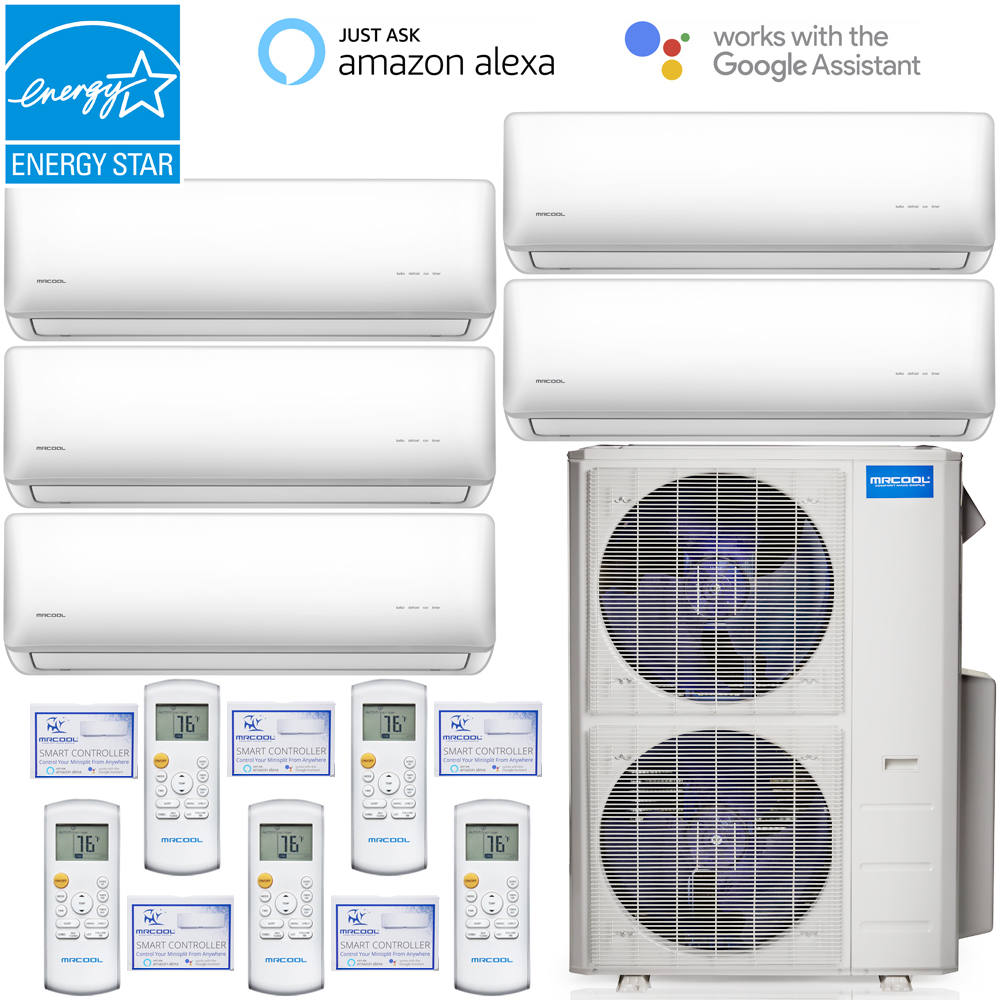

This MRCOOL® Olympus 48k Ductless Mini-Split Condenser is the answer to your heating and cooling problems without breaking the bank. Rely on this Energy Star certified condenser to help save money on your utility bills thanks to its 22.4 SEER and 11 HSPF. It uses environmentally-friendly refrigerant R-410A, and features Gold Fin® anti-corrosion technology. When installed by a professional and registered, you can feel confident with the 7-year compressor warranty, 5-year parts warranty, and 1-year remote warranty.
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
- , , ,
UPC: 840255522021
country_of_origin:
WARRANTIES:
registered_warranty:5-year Parts/7-year Compressor/1-year Remote
base_warranty:
registered_parts_warranty: 5-year
base_parts_warranty:
registered_compressor_warranty: 7-year
base_compressor_warranty:
registered_heat_exchanger_warranty:
base_heat_exchanger_warranty:
registered_remote_warranty: 1-year
base_remote_warranty:
registered_labor_warranty:
base_labor_warranty:
TECHNICAL SPECIFICATIONS: (blank value means does not apply or not available)
Accessory_Type: NA
cased: NA
configuration:
works_with:
seer: Up To 22.4
seer2: 23.4
max_seer:
eer: Up To 12.5
eer2: 12.5
eer_part_load:
cop_47:
cop_47_part_load:
hspf: hspf4/hspf5: 11/8.8
hspf2: hspf2-4/hspf2-5: 8.7/6.8
afue:
cfm:
tonnage:
cooling_capacity: 48000 BTU
heating_capacity: 48000 BTU
fuel_type: Electric
btu_input:
btu_output:
voltage: 208/230VÂ Â phase: 1
cycle: 60Hz
stage:
max_fuse_breaker: 60 A
min_circuit_ampacity: 40 A
mount_type:
color:
color_family:
rated_load:
full_load:
max_coverage_area:
zone_capacity: 5
refrigerant_type: R410A
refrigerant_volume: 162 oz
decibel_rating: 64 dBA
decibel_rating_low:
decibel_rating_high:
air_flow_direction:
number_of_speeds:
oscillation:
number_of_burners:
inverter:
min_ambient_cool:
min_ambient_heat:
drain_connection_size:
gas_connection_size:
lineset_included:
line_set_length:
max_lineset_length:
lineset_fitting_type:
liquid_line_fitting:
liquid_line_size:
suction_line_fitting:
suction_line_size: 3/8in & 1/2in
control_type:
compressor_motor_type: ROTARY
condenser_fan_motor_type:
condenser_fan_motor_hp:
condenser_fan_motor_rpm: 900/850/800/750
blower_motor_type:
blower_motor_hp:
blower_motor_speeds:
blower_motor_rpm:
filter_type:
filter_size:
heat_exchanger_type:
ignition_type:
vent_connector:
metering_device:
auxiliary_heater_included:
auxiliary_heater_available:
auxiliary_heater_sizes:
lp_kit_included:
lp_kit_available:
low_voltage_compensation:
overload_protection: yes
adjustable_thermostat:
fan_only_option:
quiet_mode:
sleep_mode:
auto_cool:
wifi_compatibility:
app_compatibility:
works_with_ios:
works_with_android:
remote_control_included:
ul_reconized:
ul_listed:
csa_listed:
csa_certified:
etl_listed:
etl_certified:
iso_certified;
leed_certified:
ashrae_compliant:
energy_star_compliant: yes
energy_star_certified: yes
ahri_certified: yes
has_batteries: yes
contains_electronics: yes
contains_chemicals: yes
contains_aerosol: yes
contains_compressed_gas: yes
proposition_65_warning:
restricted_states: GU, PR, VI
net_depth: 16.34in
net_height: 52.48in
net_width: 37.48in
net_weight: 225.53 lbs
gross_depth: 19.49in
gross_height: 58.27in
gross_width: 43.11in
gross_weight: 256.62 lbs
condenser_depth:
condenser_height:
condenser_width:
condenser_weight:
air_handler_depth:
air_handler_height:
air_handler_width:
air_handler_weight:
freight_class:
COPY AND PASTE FOLLOWING MANUAL URLS:
brochure: https://mrcool.com/wp-content/dox_repo/mc-oly-b-mz-br-en-01.pdf
install_manual: https://mrcool.com/wp-content/dox_repo/mc-oly-sz-mz-im-en-02.pdf
specs:
owner_manual:
remote_manual:
technical_manual:
service_manual:
warranty_doc:
accessory_manual_1:
accessory_manual_2:
accessory_manual_3:
ahri_certs: https://mrcool.com/wp-content/dox_repo/AHRI/mc_oly_mz_MULTI5_B_Certs.pdf
energy_guide_certs: https://mrcool.com/wp-content/dox_repo/EnergyGuide/mc_oly_mz_MULTI5_B_EG.pdf
other_certs:
misc_doc4:
