Description

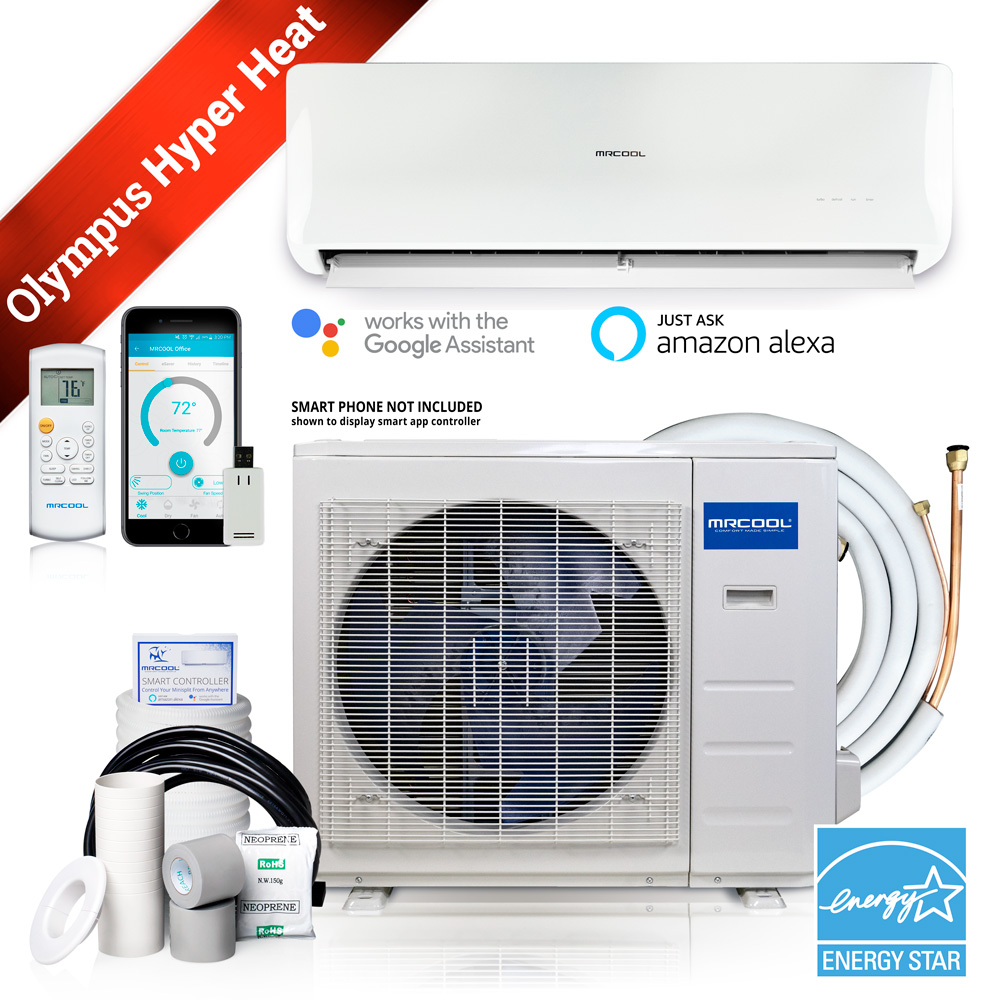

Create a comfortable and cost-effective home with the Olympus Hyper Heat 24,000 BTU Ductless Mini Split System. This Energy Star certified system now features a higher SEER of 21.5 and a 12 HSPF. When installed by a professional, this ductless heat pump can provide effective and efficient heating performance even when it is bitterly cold outside. In addition, it also creates superior cooling during warmer months. Expect steady and reliable heating and cooling that is both efficient and quiet. The WiFi enabled control gives you better functionality, an easier setup process, and will allow you to control the system from your Amazon Alexa, Google Assistant, or the SmartHVAC app on your Apple or Android device.
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
- , , ,
UPC: 840255521987
country_of_origin:
WARRANTIES:
registered_warranty:5-year Parts/7-year Compressor/1-year Remote
base_warranty:
registered_parts_warranty: 5-year
base_parts_warranty:
registered_compressor_warranty: 7-year
base_compressor_warranty:
registered_heat_exchanger_warranty:
base_heat_exchanger_warranty:
registered_remote_warranty: 1-year
base_remote_warranty:
registered_labor_warranty:
base_labor_warranty:
TECHNICAL SPECIFICATIONS: (blank value means does not apply or not available)
Accessory_Type: NA
cased: NA
configuration:
works_with:
seer: Up To 21.5
seer2: 21.5
max_seer:
eer: Up To 13
eer2: 13
eer_part_load:
cop_47:
cop_47_part_load:
hspf: hspf4/hspf5: 12/10
hspf2: hspf2-4/hspf2-5: 11.4/9.2
afue:
cfm:
tonnage:
cooling_capacity: 24000 BTU
heating_capacity: 29000 BTU
fuel_type: Electric
btu_input:
btu_output:
voltage: 208/230VÂ Â phase: 1
cycle: 60Hz
stage:
max_fuse_breaker: 30 A
min_circuit_ampacity: 3:00 AM
mount_type:
color:
color_family:
rated_load:
full_load:
max_coverage_area:
zone_capacity: 1
refrigerant_type: R410A
refrigerant_volume: 91.71 oz
decibel_rating: 39 dBA
decibel_rating_low: 34 dBA
decibel_rating_high: 46 dBA
air_flow_direction:
number_of_speeds:
oscillation:
number_of_burners:
inverter:
min_ambient_cool:
min_ambient_heat:
drain_connection_size:
gas_connection_size:
lineset_included:
line_set_length:
max_lineset_length:
lineset_fitting_type:
liquid_line_fitting:
liquid_line_size:
suction_line_fitting:
suction_line_size: 5/8in
control_type:
compressor_motor_type: Twin-ROTARY
condenser_fan_motor_type:
condenser_fan_motor_hp:
condenser_fan_motor_rpm: 950/800/500
blower_motor_type:
blower_motor_hp:
blower_motor_speeds:
blower_motor_rpm: 1000/850/700
filter_type: Replaceable
filter_size:
heat_exchanger_type:
ignition_type:
vent_connector:
metering_device:
auxiliary_heater_included:
auxiliary_heater_available:
auxiliary_heater_sizes:
lp_kit_included:
lp_kit_available:
low_voltage_compensation:
overload_protection: yes
adjustable_thermostat:
fan_only_option: yes
quiet_mode: yes
sleep_mode: yes
auto_cool: yes
wifi_compatibility: yes
app_compatibility: yes
works_with_ios: yes
works_with_android: yes
remote_control_included: yes
ul_reconized:
ul_listed:
csa_listed:
csa_certified:
etl_listed:
etl_certified:
iso_certified;
leed_certified:
ashrae_compliant:
energy_star_compliant: yes
energy_star_certified: yes
ahri_certified: yes
has_batteries: yes
contains_electronics: yes
contains_chemicals: yes
contains_aerosol: yes
contains_compressed_gas: yes
proposition_65_warning:
restricted_states: GU, PR, VI
net_depth:
net_height:
net_width:
net_weight:
gross_depth:
gross_height:
gross_width:
gross_weight:
condenser_depth: 16.14in
condenser_height: 31.89in
condenser_width: 37.24in
condenser_weight: 134.48lbs
air_handler_depth: 10.83in
air_handler_height: 14.57in
air_handler_width: 44.88in
air_handler_weight: 43.65lbs
freight_class:
COPY AND PASTE FOLLOWING MANUAL URLS:
brochure: https://mrcool.com/wp-content/dox_repo/mc-oly-b-hh-br-en-01.pdf
install_manual: https://mrcool.com/wp-content/dox_repo/mc-oly-sz-mz-im-en-02.pdf
specs: https://mrcool.com/wp-content/dox_repo/mc-oly-hh-b-perf-ss-en-01.pdf
owner_manual:
remote_manual:
technical_manual:
service_manual:
warranty_doc:
accessory_manual_1:
accessory_manual_2:
accessory_manual_3:
ahri_certs: https://mrcool.com/wp-content/dox_repo/AHRI/mc-oly-hh-b-24-Certs.pdf
energy_guide_certs: https://mrcool.com/wp-content/dox_repo/EnergyGuide/mc-oly-hh-b-24-EG.PDF
other_certs:
misc_doc4:
