MRCOOL Easy Pro Complete System : EZPRO-09-HP-11516

Description

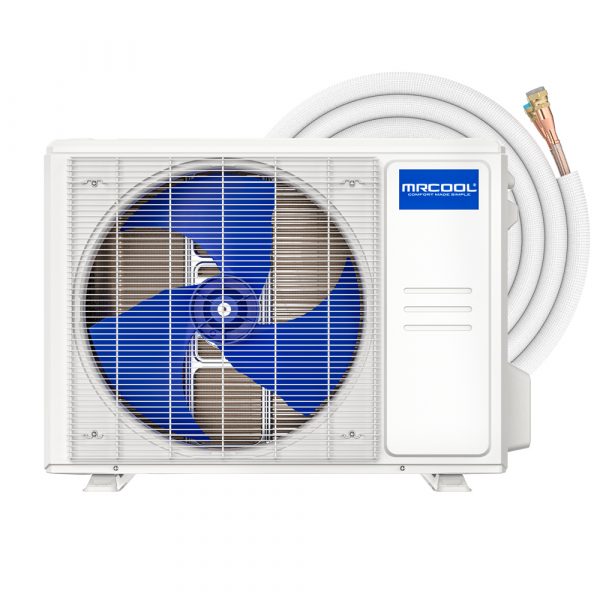

The easy-to-install MRCOOL® Easy Pro® 9k BTU Ductless Mini-Split Heat Pump System can heat or cool a space of up to 350 square feet with a 20 SEER rating. It includes a 16 foot pre-charged line set with Fast Connection® fittings. This system has many features such as the Follow Me® feature that keeps you comfortable no matter where you are in the room, along with convenient operational modes such as Sleep mode, Auto mode, or Timer mode. Maintaining the system is easy as the air filters only need to be rinsed, dried, and replaced, while the indoor and outdoor units only need to be cleaned with a damp or dry cloth. You can control this system with the included remote, the SmartHVAC app, or your Amazon Alexa or Google Assistant. Enjoy protected comfort thanks to the 1-year compressor warranty and 2-year parts warranty. This energy-efficient, feature-packed HVAC system can be easily installed and easily maintained while providing the ultimate in comfort.

• Up to 20 SEER

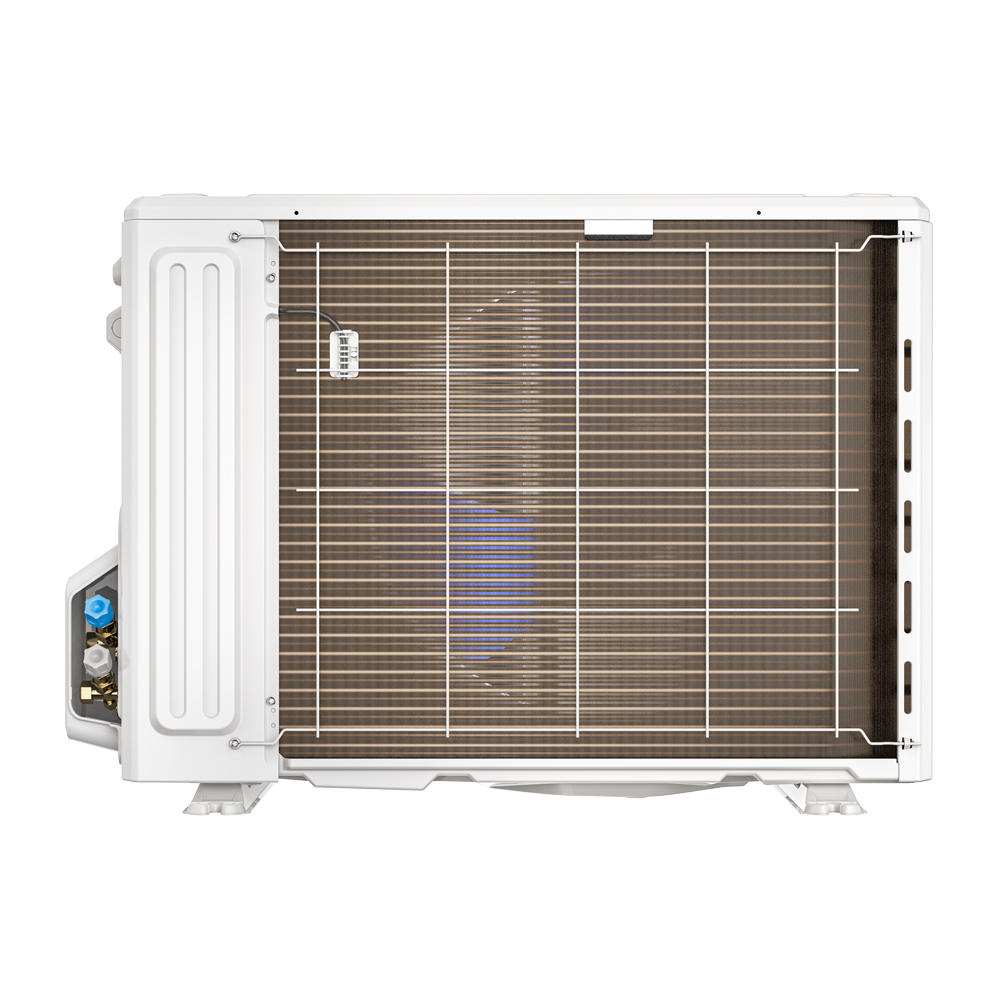

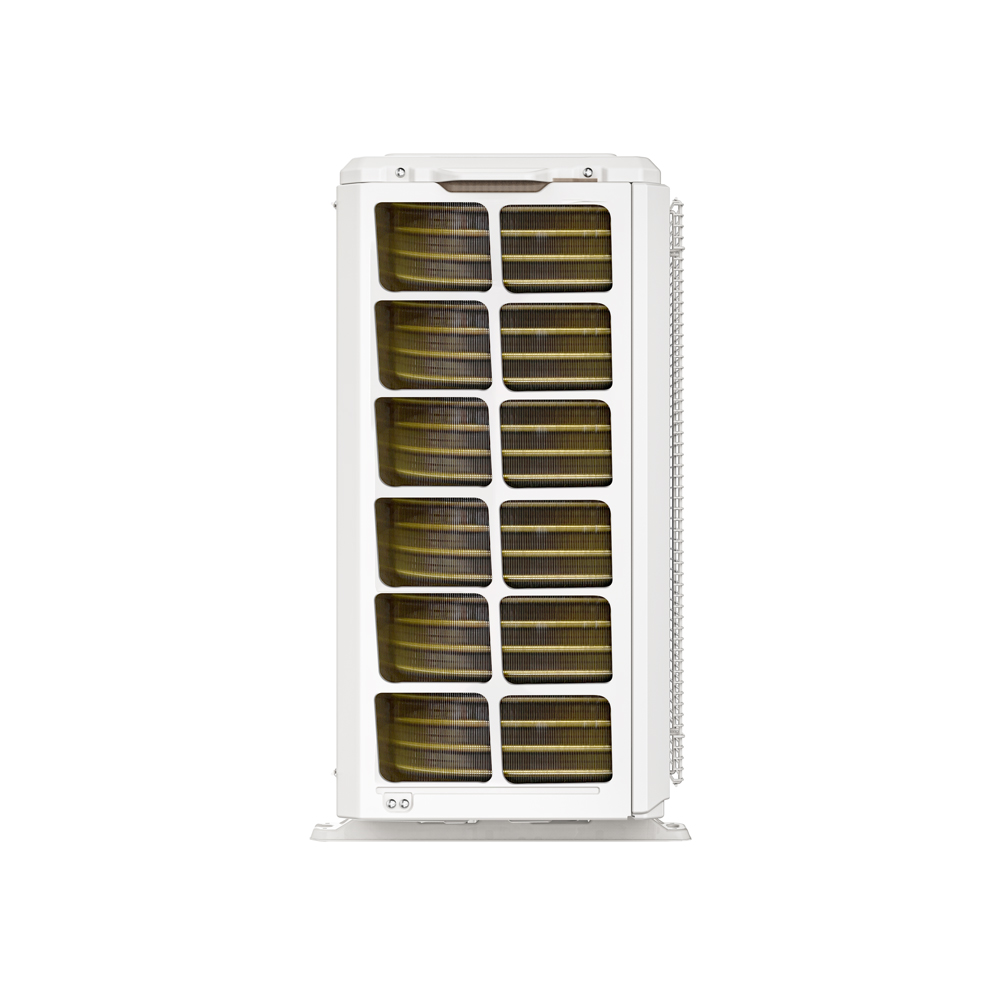

• Gold Fin® condenser: corrosion resistant – live on the coast? Don’t worry, our condenser is built to resist long term corrosion
• Energy Efficient DC Inverter
• Low ambient cooling: cooling down to 5F exterior temperatures, the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year
• Includes features such as timer mode, refrigerant leakage detection, and more
• Systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
• Quiet Running
• ,  ,  ,

UPC: 810035935198
country_of_origin:

WARRANTIES:

registered_warranty:2-year Parts/1-year Compressor
base_warranty:
registered_parts_warranty: 2 years
base_parts_warranty:
registered_compressor_warranty: 1 year
base_compressor_warranty:
registered_heat_exchanger_warranty:
base_heat_exchanger_warranty:
registered_remote_warranty:
base_remote_warranty:
registered_labor_warranty:
base_labor_warranty:

TECHNICAL SPECIFICATIONS: (blank value means does not apply or not available)

Accessory_Type: NA
cased: NA
configuration:
works_with:
seer: 20
seer2: 20
max_seer:
eer: 11.5
eer2: 11.5
eer_part_load:
cop_47: 3.14
cop_47_part_load:
hspf: hspf4/hspf5 : 10.3/8.5
hspf2: hspf2-4/hspf2-5 : 9.4/7.2
afue:
cfm: 238.82/170.00/137.06
tonnage:
cooling_capacity: 9000 BTU
heating_capacity: 10000 BTU
fuel_type: Electric
btu_input:
btu_output:
voltage: 115 V   phase: 1
cycle: 60 Hz
stage:
max_fuse_breaker: 30 A
min_circuit_ampacity: 20 A
mount_type:
color:
color_family:
rated_load: 14.5 A
full_load:
max_coverage_area:
zone_capacity: 1
refrigerant_type: R-410A
refrigerant_volume: 27.87 oz
decibel_rating: 34 dBA
decibel_rating_low: 22.5 dBA
decibel_rating_high: 38.5 dBA
air_flow_direction:
number_of_speeds:
oscillation:
number_of_burners:
inverter:
min_ambient_cool: 5F – 122F
min_ambient_heat: 5F – 75.2F
drain_connection_size:
gas_connection_size:
lineset_included:
line_set_length:
max_lineset_length: 82ft
lineset_fitting_type:
liquid_line_fitting:
liquid_line_size:
suction_line_fitting:
suction_line_size: 1/2in
control_type:
compressor_motor_type: Rotary
condenser_fan_motor_type:
condenser_fan_motor_hp:

condenser_fan_motor_rpm: 850/500
blower_motor_type:
blower_motor_hp:
blower_motor_speeds: 3
blower_motor_rpm: 1050/810/690
filter_type: Washable
filter_size:
heat_exchanger_type:
ignition_type:
vent_connector:
metering_device:
auxiliary_heater_included:
auxiliary_heater_available:
auxiliary_heater_sizes:
lp_kit_included:
lp_kit_available:
low_voltage_compensation:
overload_protection:
adjustable_thermostat:
fan_only_option: Yes
quiet_mode:
sleep_mode: Yes
auto_cool: Yes
wifi_compatibility: yes
app_compatibility: yes
works_with_ios: Yes
works_with_android: Yes
remote_control_included: Yes
ul_reconized:
ul_listed:

csa_listed:
csa_certified:
etl_listed:
etl_certified:
iso_certified;
leed_certified:
ashrae_compliant:
energy_star_compliant:
energy_star_certified: yes
ahri_certified: yes
has_batteries:
contains_electronics:
contains_chemicals:
contains_aerosol:
contains_compressed_gas:
proposition_65_warning: Yes
restricted_states:
net_depth:
net_height:
net_width:
net_weight:
gross_depth:
gross_height:
gross_width:
gross_weight:

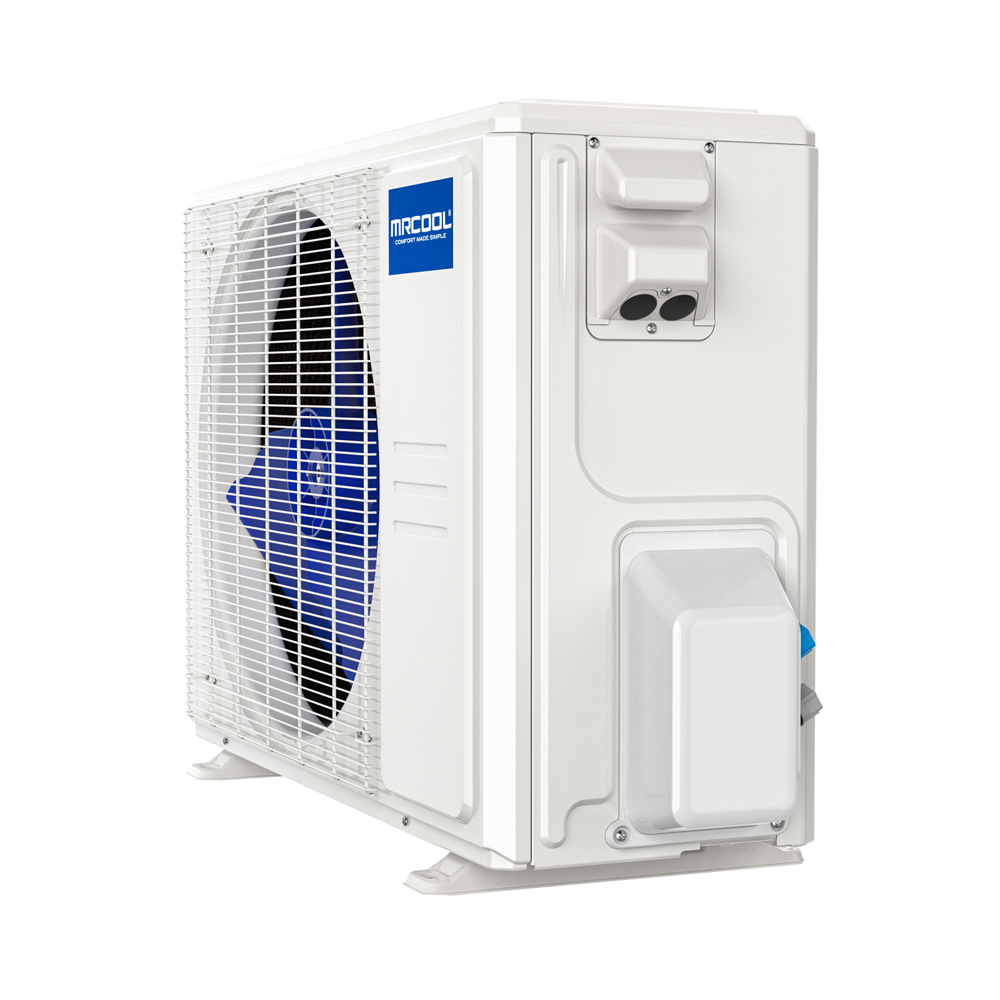

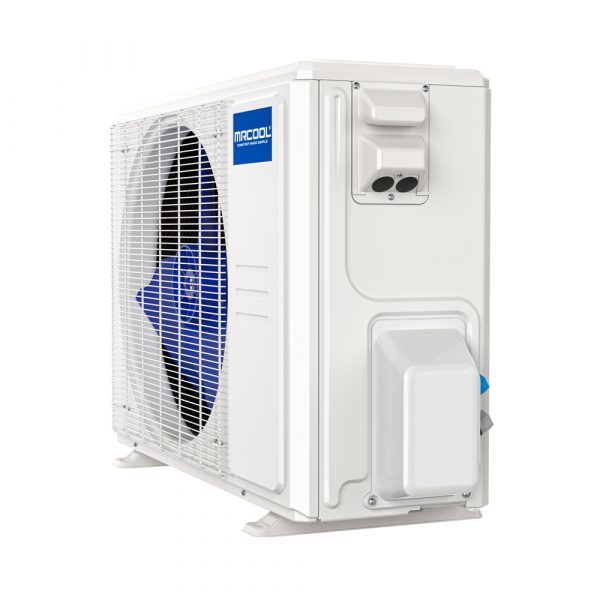

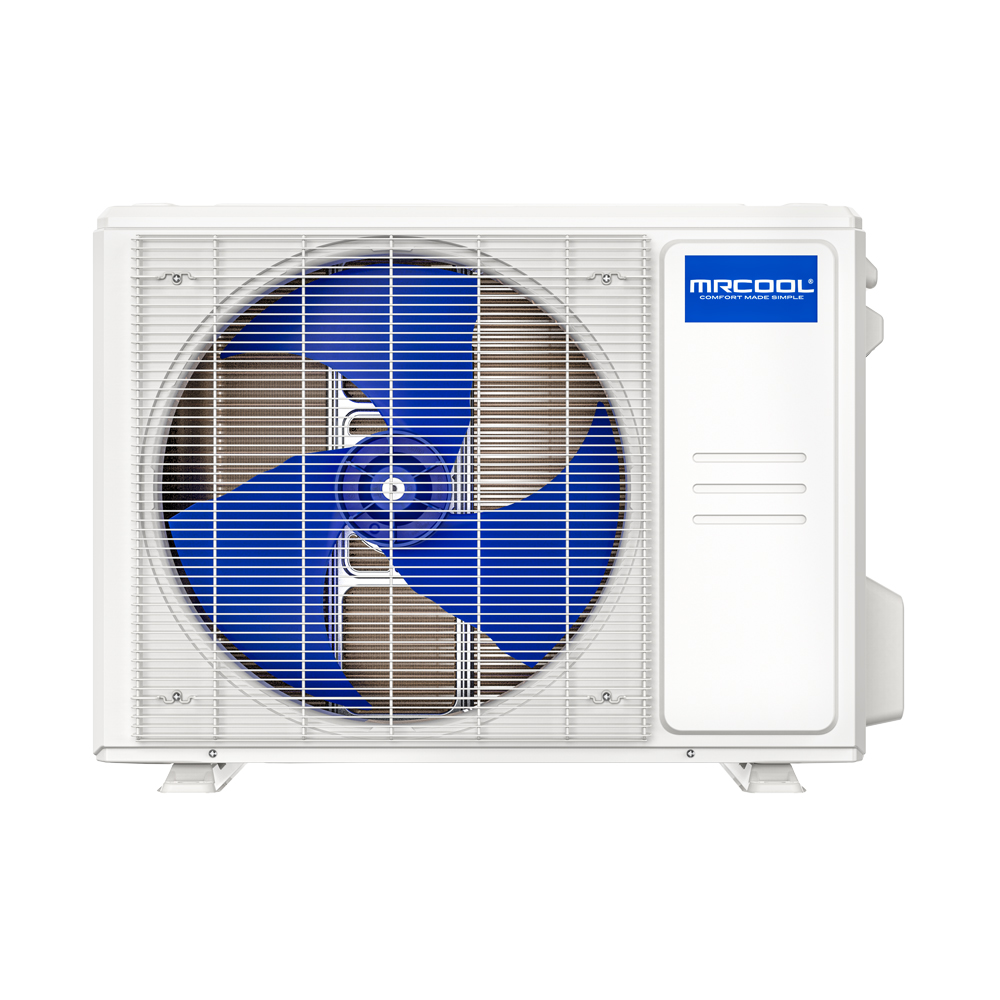

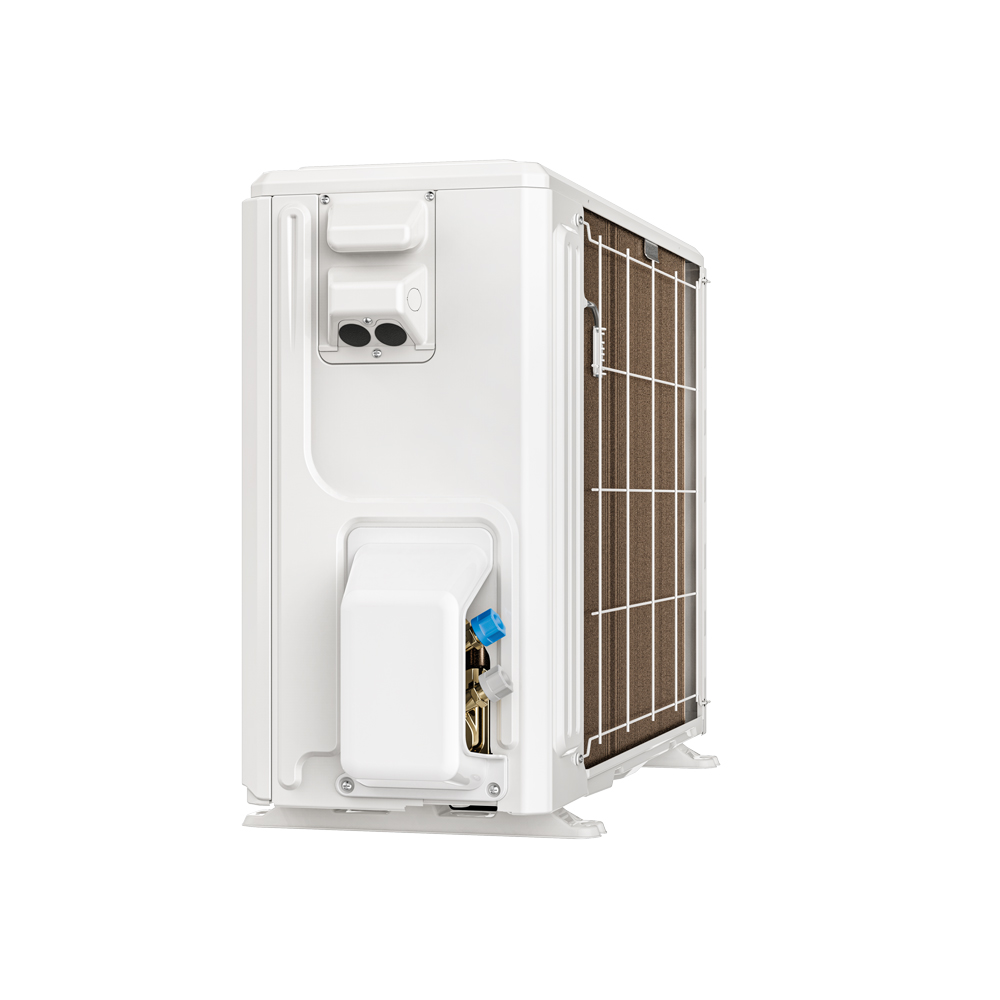

condenser_depth: 10.63 in
condenser_height: 19.49 in
condenser_width: 28.35 in
condenser_weight: 54.45 lbs

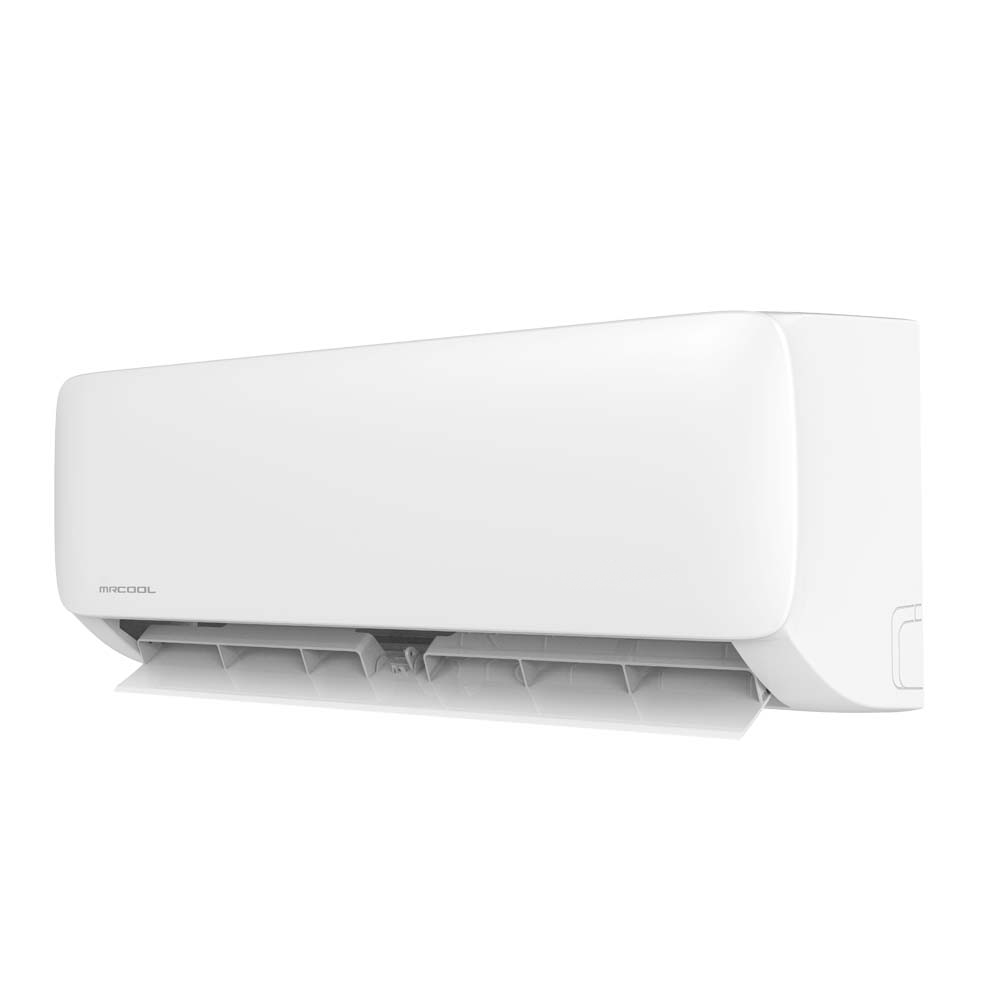

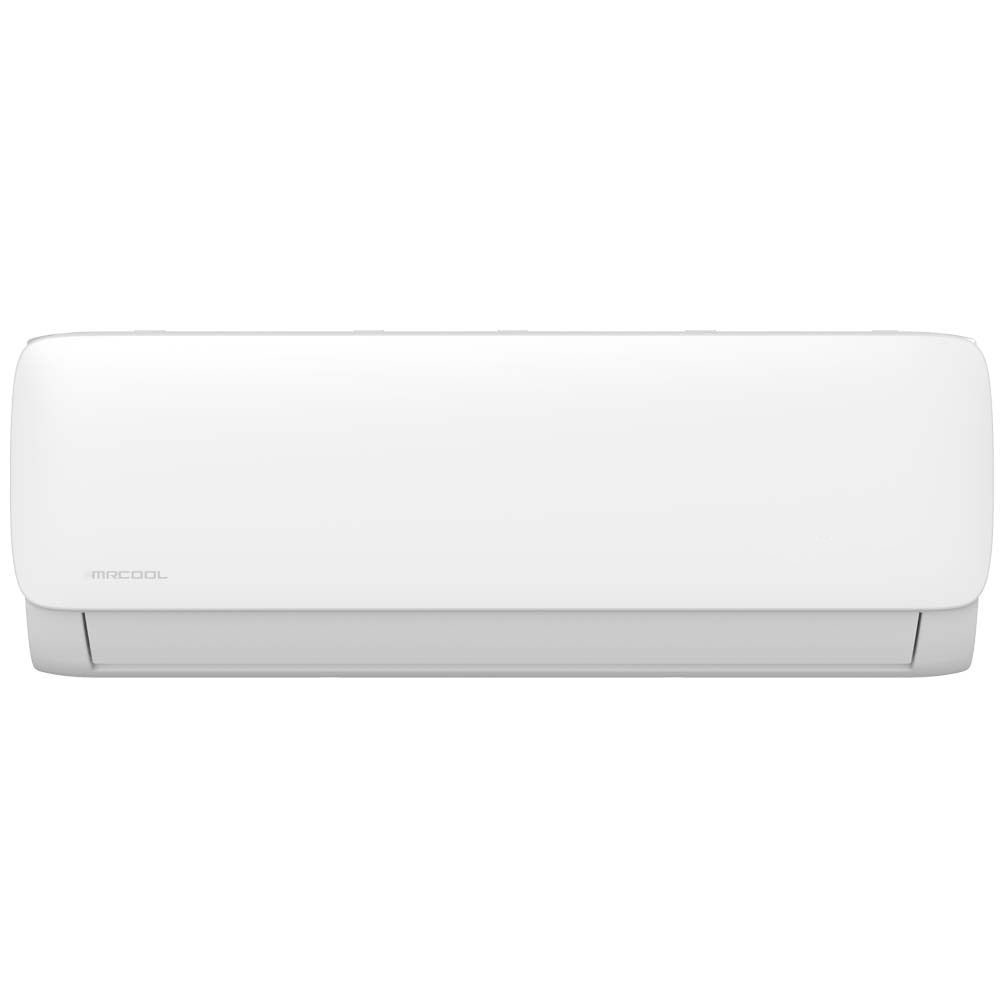

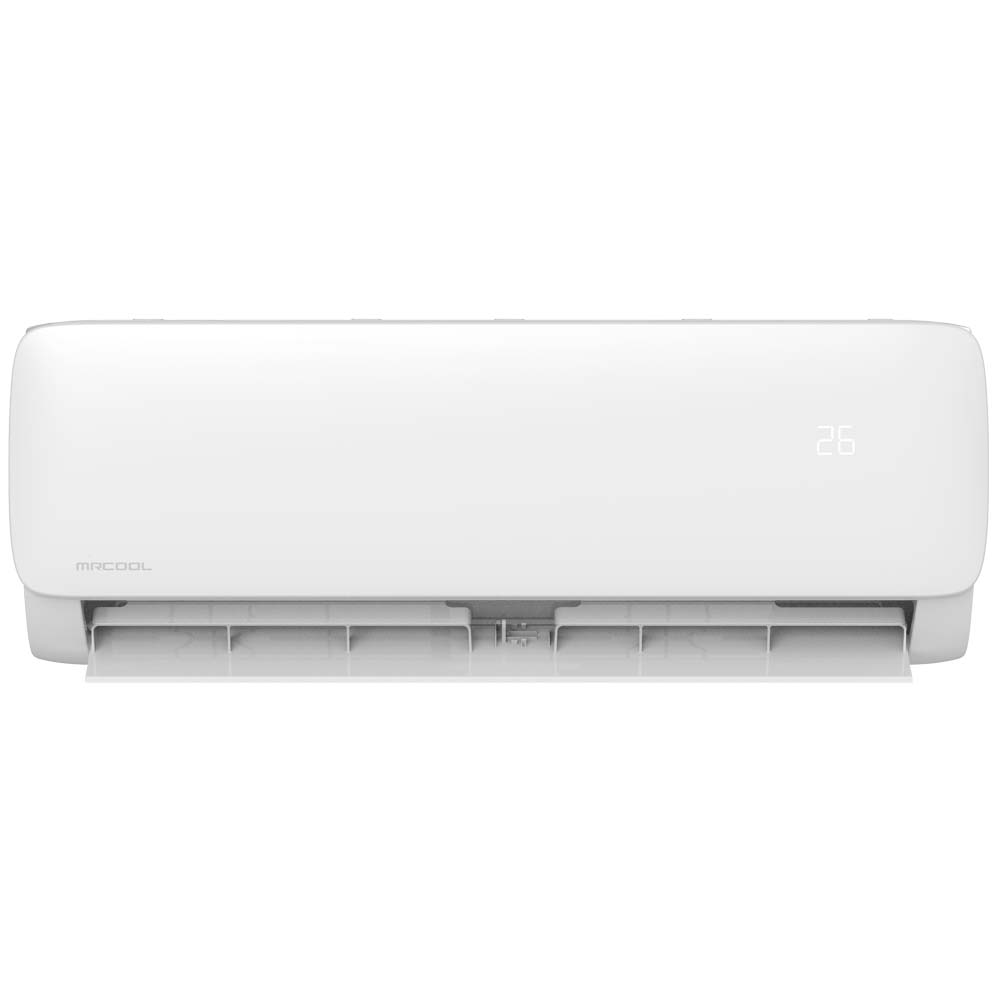

air_handler_depth: 7.87 in
air_handler_height: 11.5 in
air_handler_width: 28.70 in
air_handler_weight: 17.64 lbs
freight_class:

COPY AND PASTE FOLLOWING MANUAL URLS:

brochure: https://mrcool.com/wp-content/dox_repo/mc-ez-pro-br-en-01.pdf
install_manual: https://mrcool.com/wp-content/dox_repo/mc-ez-pro-im-en-01.pdf
specs:
owner_manual:
remote_manual: https://mrcool.com/wp-content/dox_repo/mc-rmt-um-en-02.pdf
technical_manual:
service_manual:
warranty_doc: https://mrcool.com/wp-content/dox_repo/mc-ezpro-wr-en-01.pdf
accessory_manual_1:
accessory_manual_2:
accessory_manual_3:
ahri_certs: https://mrcool.com/wp-content/dox_repo/AHRI/mc_ez-pro-09-115C_Certs.pdf
energy_guide_certs: https://mrcool.com/wp-content/dox_repo/EnergyGuide/mc_ez-pro-09-115C-EG_Certs.PDF
other_certs:
misc_doc4:
