MRCOOL DIY 4th Gen E STAR : DIY-12-HP-WM-115C25

Description

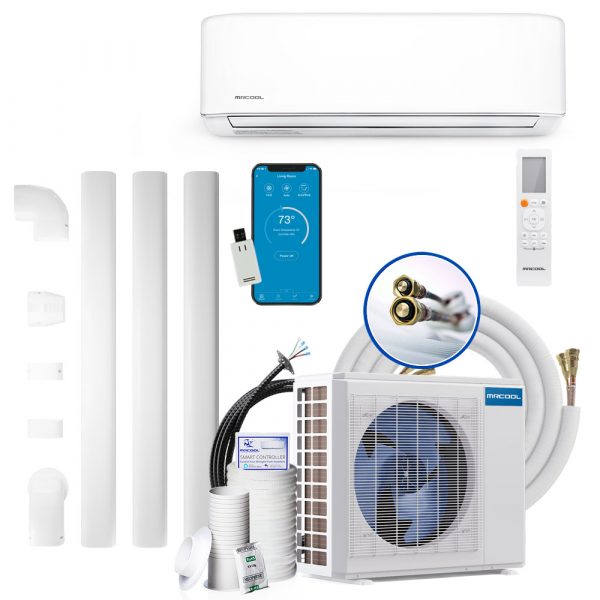

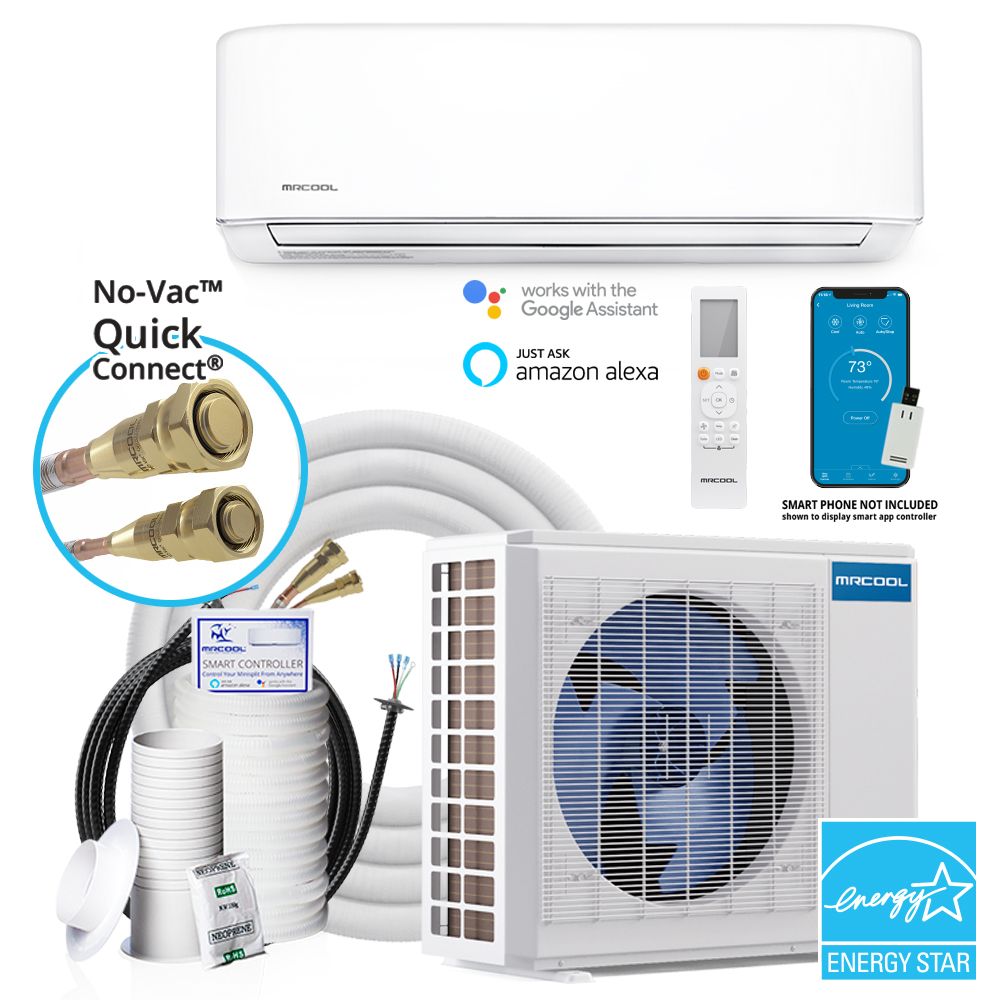

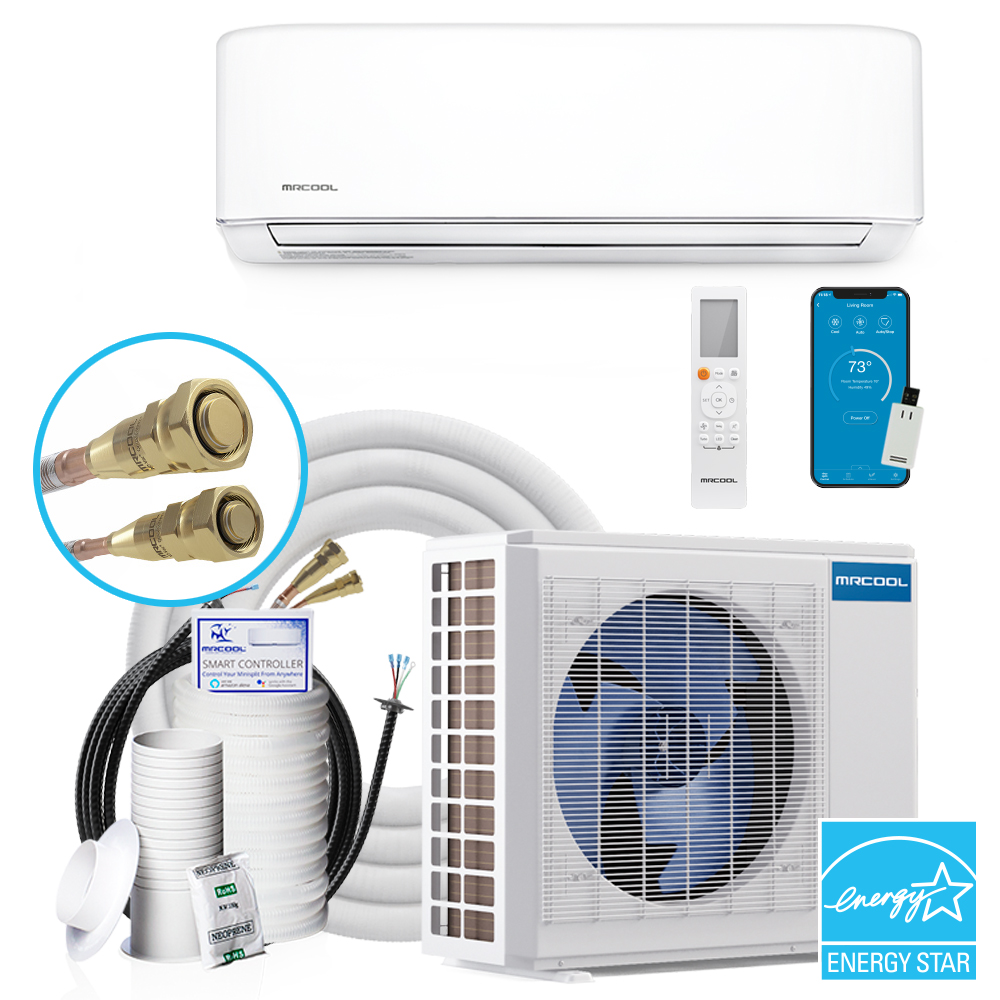

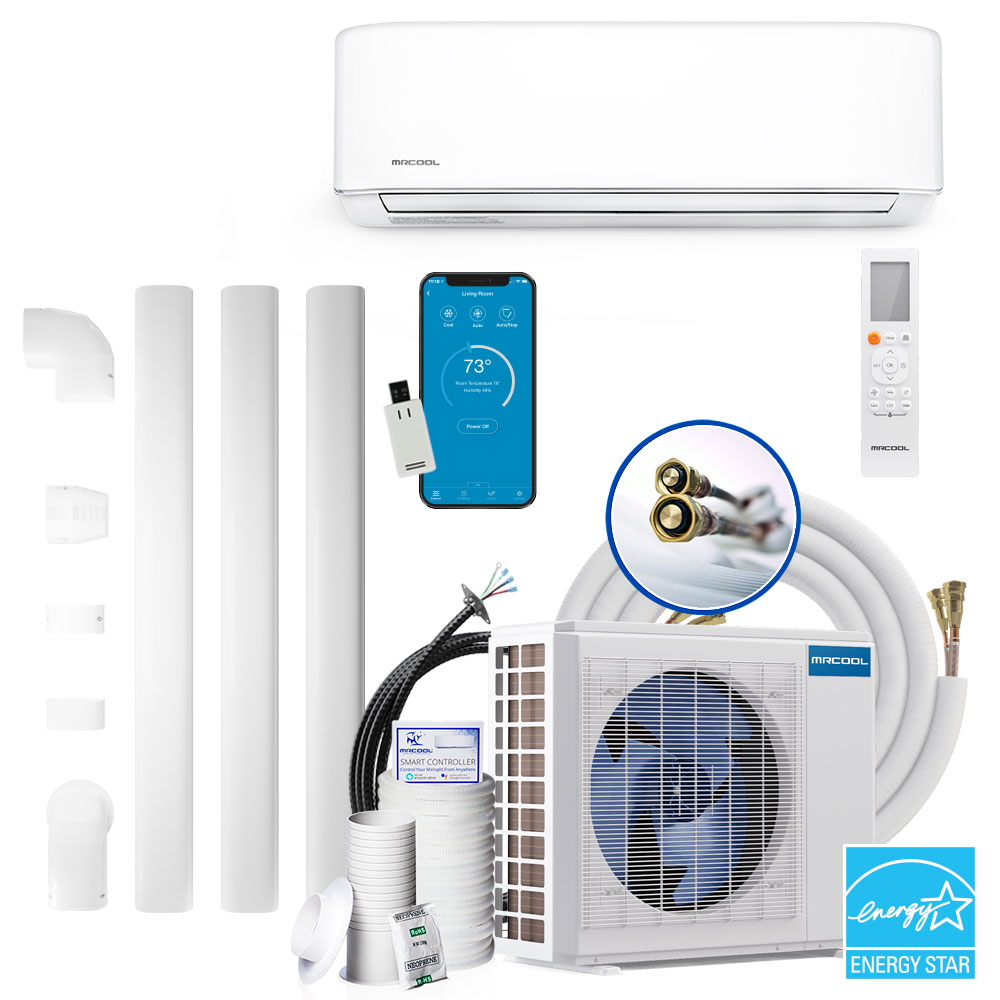

Introducing the latest in home comfort technology, with the 4th Generation MRCOOL® DIY 12K BTU, 22 SEER Ductless Heat Pump System. This powerful single-zone system has the capability of heating and cooling an area up to 500 sq. ft. It comes complete with a 12K condenser, 12K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The line set also has quick connectors which require no special tools, equipment, or training to install. The MrCool DIY system also includes many features that make it stand out among its competitors.The first of which is its ability to achieve an outstanding 22 SEER efficiency rating allowing it to be Energy Star certified. This system has many operating modes to select from to suit the needs of the user, including HEAT, COOL, DRY (dehumidification), and SLEEP. It also has the Follow Me function that adjusts the temperature of the room based on the temperature being read by the hand-held remote control. The DIY features the convenience of being able to operate its modes and functions with your smartphone by using the Smart HVAC app. The MrCool mini split is the only system on the market to offer a limited lifetime compressor warranty.

• Up to 22.5 SEER2
• Gold Fin® condenser: corrosion-resistant coastal living – don’t worry, our condenser is built to resist long term corrosion
• Variable-speed DC inverter compressor technology cuts operating costs
• R-410A environmentally friendly refrigerant
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
• ,  ,  ,

UPC: 810035935150
country_of_origin:

WARRANTIES:

registered_warranty:Limited Lifetime Compressor
base_warranty:5-year Parts/7-year Compressor
registered_parts_warranty:
base_parts_warranty: 5-year Parts
registered_compressor_warranty: Limited Lifetime Compressor
base_compressor_warranty: 7-year Compressor
registered_heat_exchanger_warranty:
base_heat_exchanger_warranty:
registered_remote_warranty:
base_remote_warranty:
registered_labor_warranty:
base_labor_warranty:

TECHNICAL SPECIFICATIONS: (blank value means does not apply or not available)

Accessory_Type: NA
cased: NA
configuration:
works_with:
seer: 22
seer2: 22.5
max_seer:
eer: 12.5
eer2: 12.5
eer_part_load:
cop_47: 3.36
cop_47_part_load:
hspf: hspf4/hspf5 : 11.5/9
hspf2: hspf2-4/hspf2-5 : 9/7
afue:
cfm: 305.88/211.76/147.06
tonnage: 1
cooling_capacity: 12000 BTU
heating_capacity: 12000 BTU
fuel_type: Electric
btu_input:
btu_output:
voltage: 115 V   phase: 1
cycle: 60 Hz
stage:
max_fuse_breaker: 25 A
min_circuit_ampacity: 19 A
mount_type:
color: White
color_family: White
rated_load: 0.53 A
full_load:
max_coverage_area: Up to 500 sqft
zone_capacity: 1
refrigerant_type: R-410A
refrigerant_volume: 38.10 oz
decibel_rating: 37/31/23.5
decibel_rating_low: 23.5 dBA
decibel_rating_high: 37 dBA
air_flow_direction:
number_of_speeds:
oscillation: 4-W
number_of_burners:
inverter: Yes
min_ambient_cool: -13F – 122F
min_ambient_heat: -13F – 75F
drain_connection_size:
gas_connection_size:
lineset_included:
line_set_length: 25ft
max_lineset_length: 75 ft
lineset_fitting_type:
liquid_line_fitting:
liquid_line_size:
suction_line_fitting:
suction_line_size: 1/2 in
control_type:
compressor_motor_type: Rotary
condenser_fan_motor_type:
condenser_fan_motor_hp:

condenser_fan_motor_rpm: 850/600
blower_motor_type:
blower_motor_hp:
blower_motor_speeds:
blower_motor_rpm: 1100/850/700
filter_type:
filter_size:
heat_exchanger_type:
ignition_type:
vent_connector:
metering_device:
auxiliary_heater_included: No
auxiliary_heater_available: No
auxiliary_heater_sizes:
lp_kit_included:
lp_kit_available:
low_voltage_compensation:
overload_protection:
adjustable_thermostat:
fan_only_option: Yes
quiet_mode: Yes
sleep_mode:
auto_cool: Yes
wifi_compatibility: Yes
app_compatibility: Yes
works_with_ios: Yes
works_with_android: Yes
remote_control_included: Yes
ul_reconized:
ul_listed: Yes

csa_listed:
csa_certified:
etl_listed:
etl_certified:
iso_certified;
leed_certified:
ashrae_compliant:
energy_star_compliant:
energy_star_certified: Yes
ahri_certified: Yes
has_batteries: Yes
contains_electronics: Yes
contains_chemicals: Yes
contains_aerosol: Yes
contains_compressed_gas: Yes
proposition_65_warning: Yes
restricted_states: GU;PR;VI
net_depth:
net_height:
net_width:
net_weight:
gross_depth:
gross_height:
gross_width:
gross_weight:

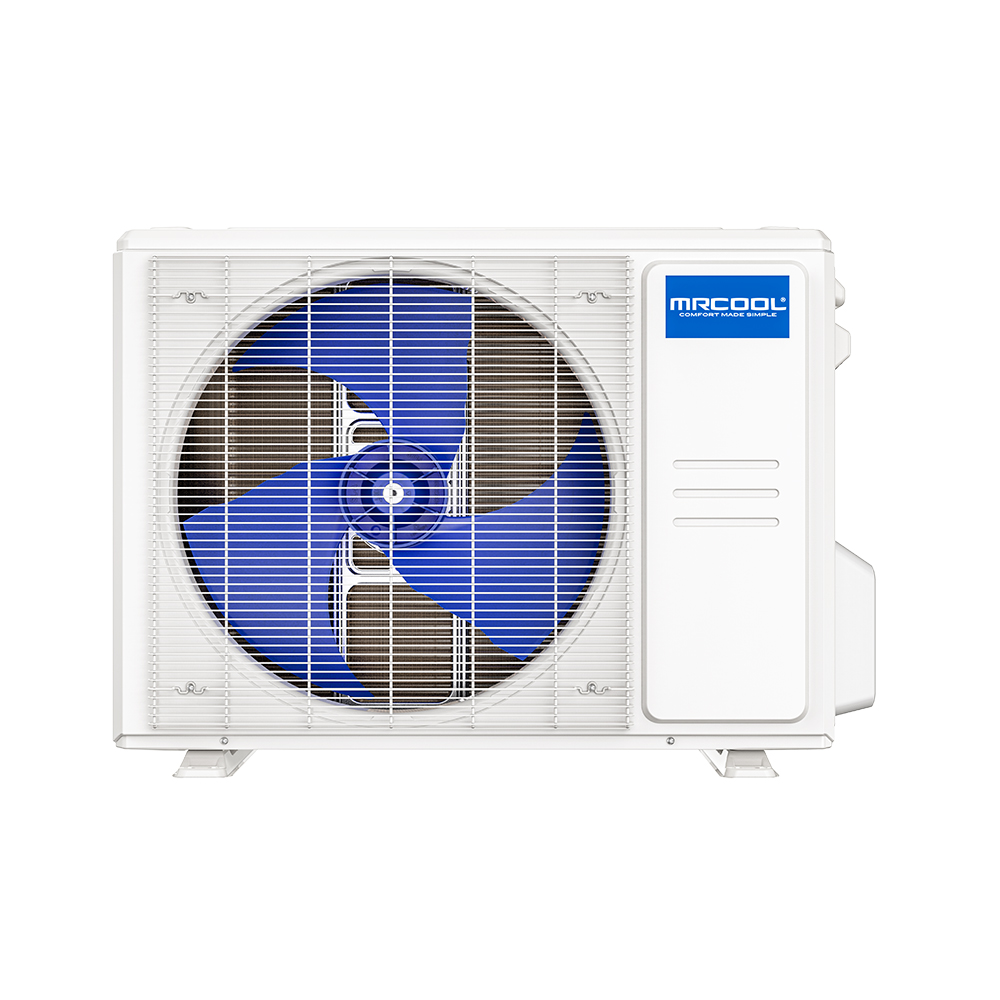

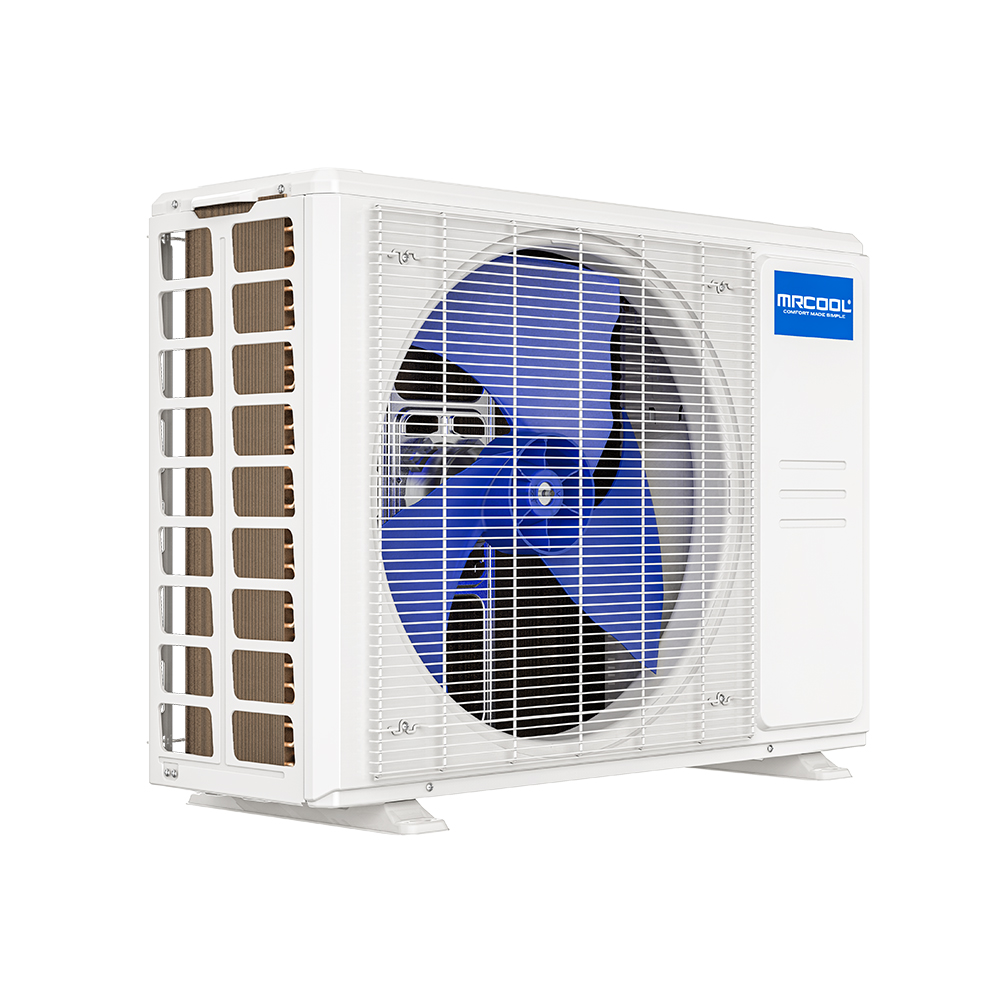

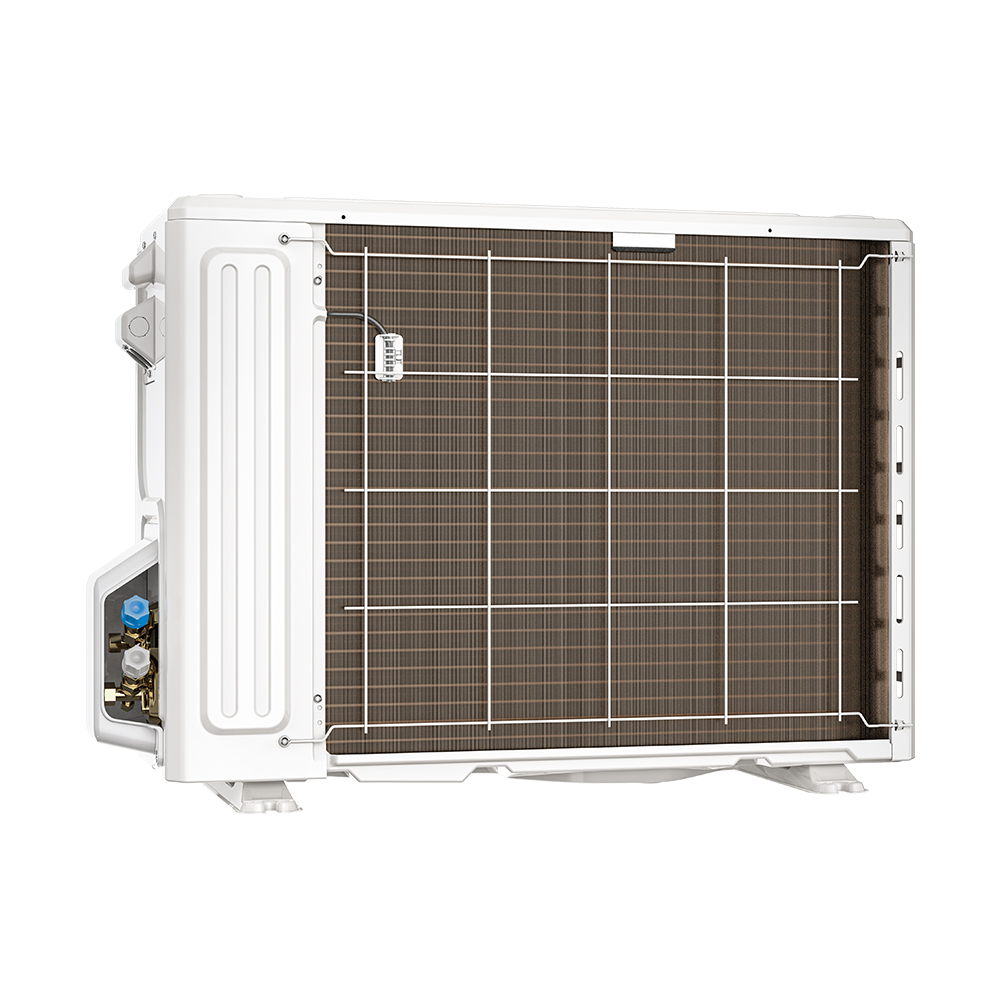

condenser_depth: 11.93 in
condenser_height: 21.85 in
condenser_width: 30.12 in
condenser_weight: 65.70 lbs

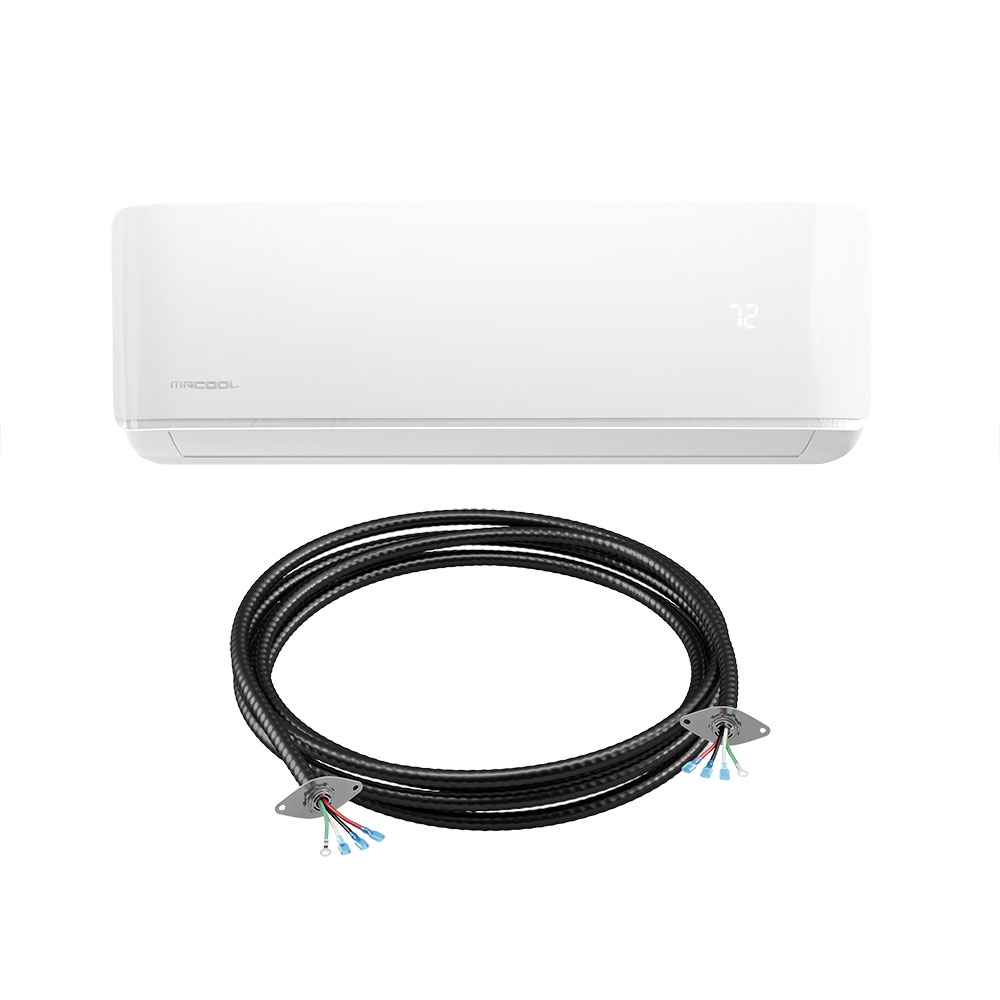

air_handler_depth: 7.44 in
air_handler_height: 11.69 in
air_handler_width: 31.57 in
air_handler_weight: 24.03 lbs
freight_class:

COPY AND PASTE FOLLOWING MANUAL URLS:

brochure: https://mrcool.com/wp-content/dox_repo/mc-diy-4-br-en-01.pdf
install_manual: https://mrcool.com/wp-content/dox_repo/mc-diy-4-es-im-um-en-01.pdf
specs: https://mrcool.com/wp-content/dox_repo/mc-diy-es-4-ss-en-01.pdf
owner_manual: https://mrcool.com/wp-content/dox_repo/mc-diy-4-es-tsg-en-01.pdf
remote_manual: https://mrcool.com/wp-content/dox_repo/mc-rmt-um-en-02.pdf
technical_manual: https://mrcool.com/wp-content/dox_repo/mc-diy-4-es-qs-im-en-01.pdf
service_manual: https://mrcool.com/wp-content/dox_repo/mc-diy-4-ah-sz-sm-en-01.pdf
warranty_doc: https://mrcool.com/wp-content/dox_repo/mc-diy-4-wr-en-01.pdf
