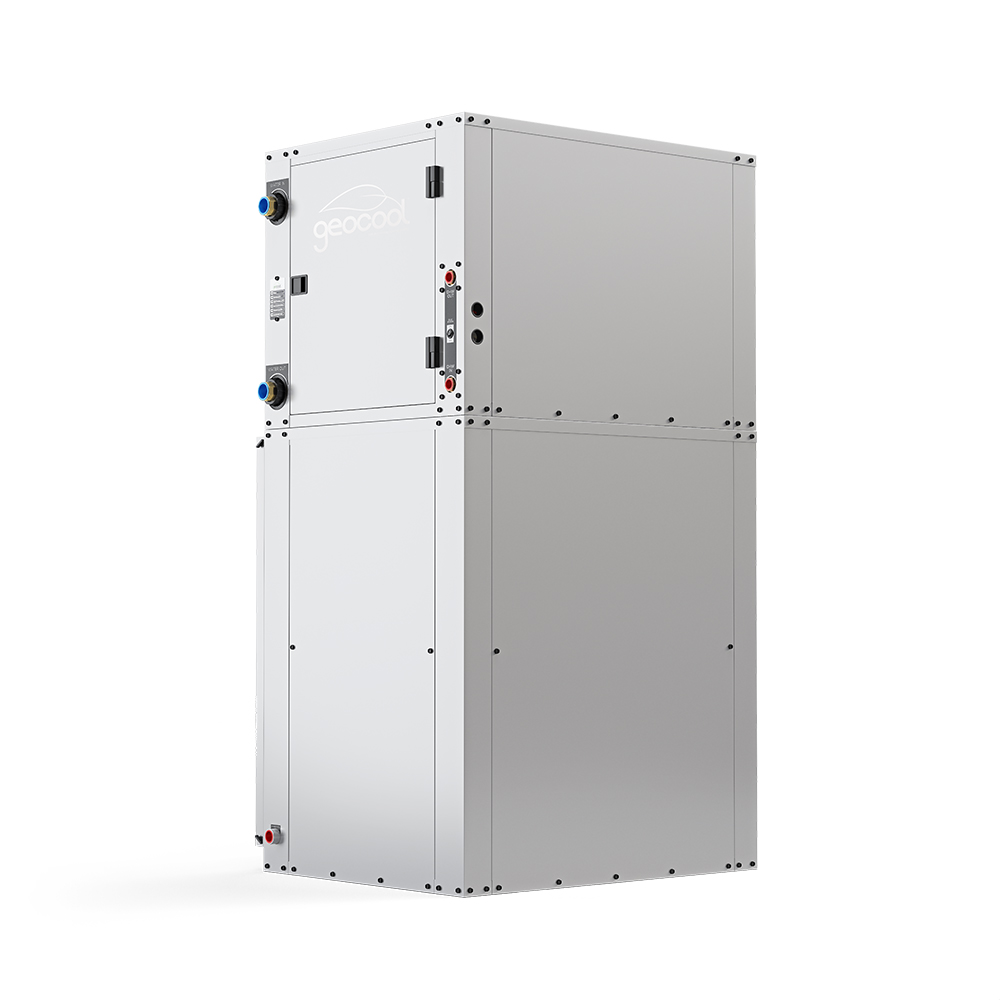

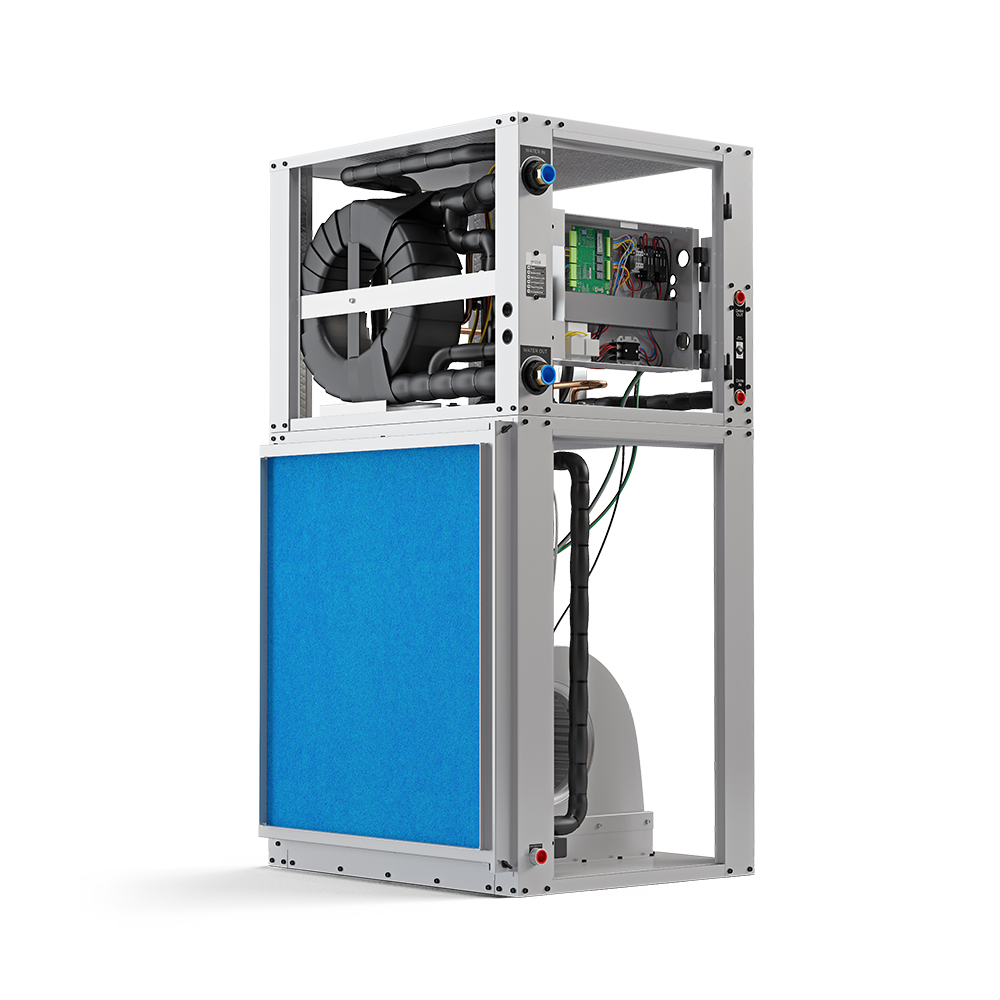

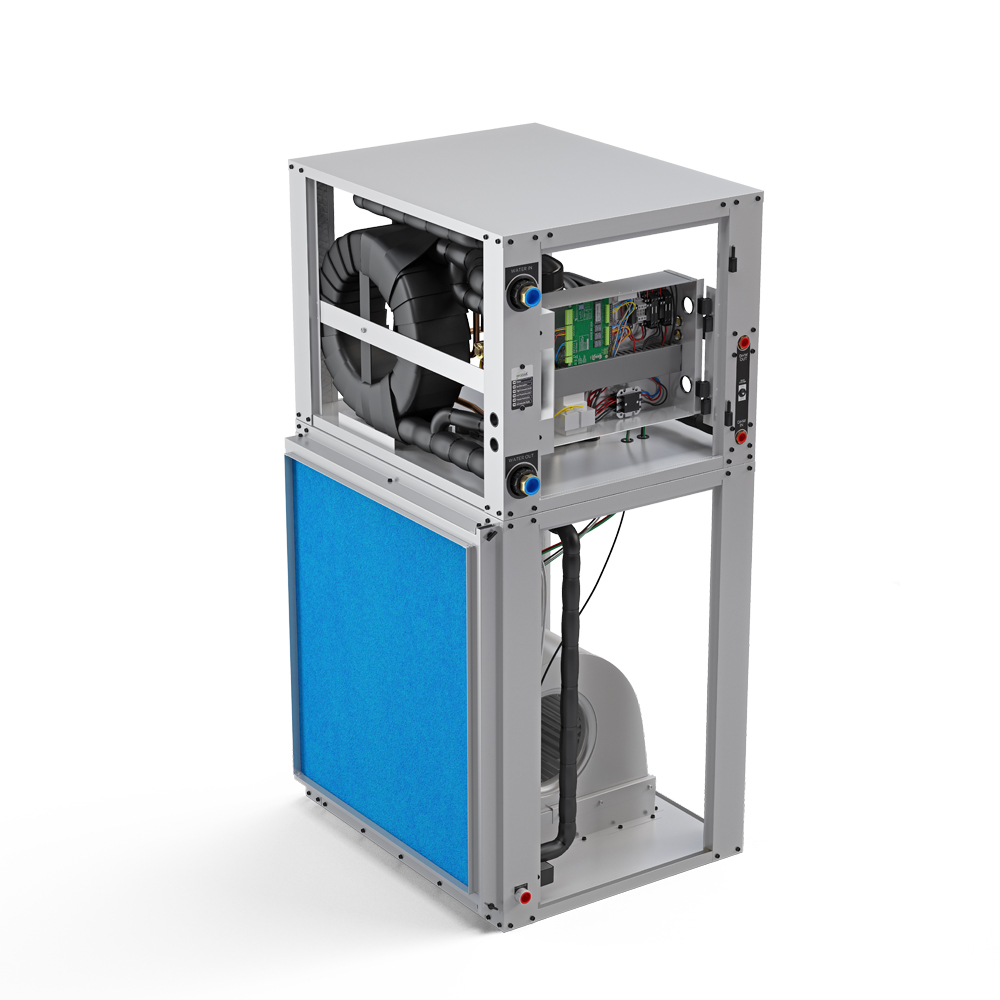

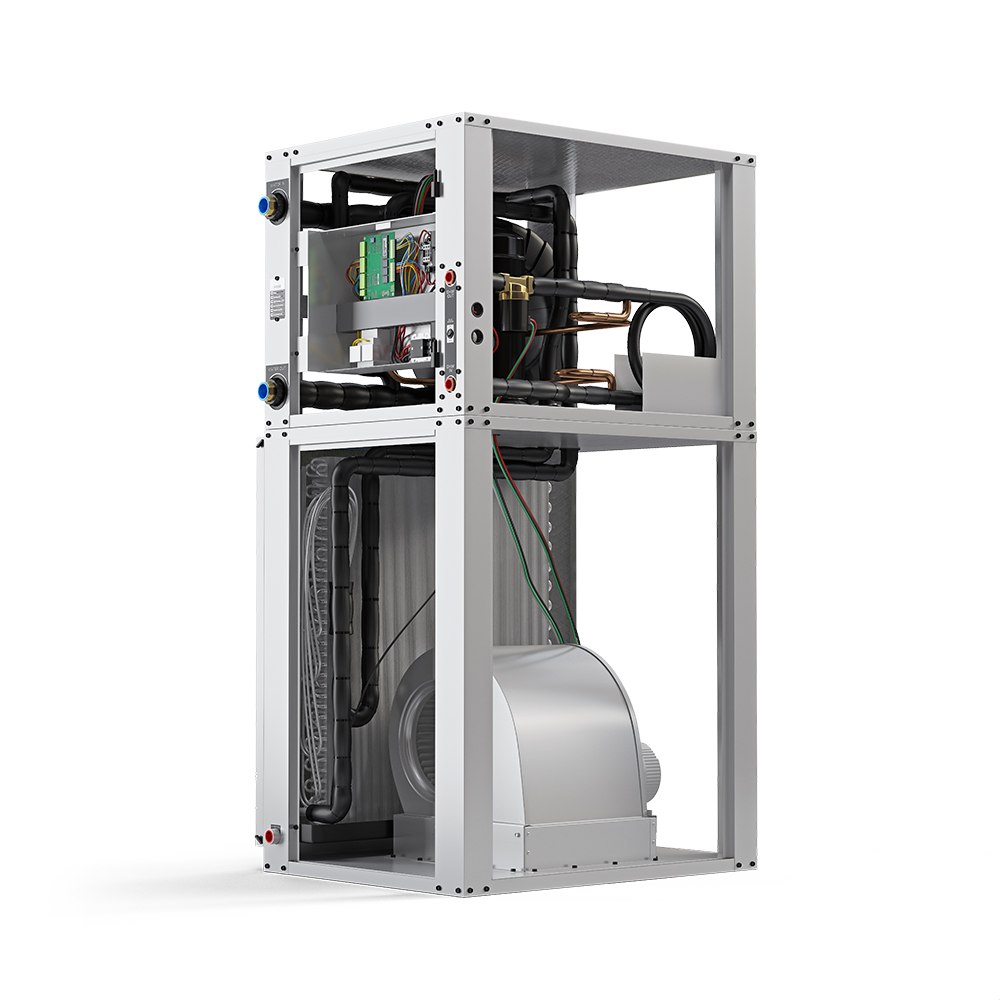

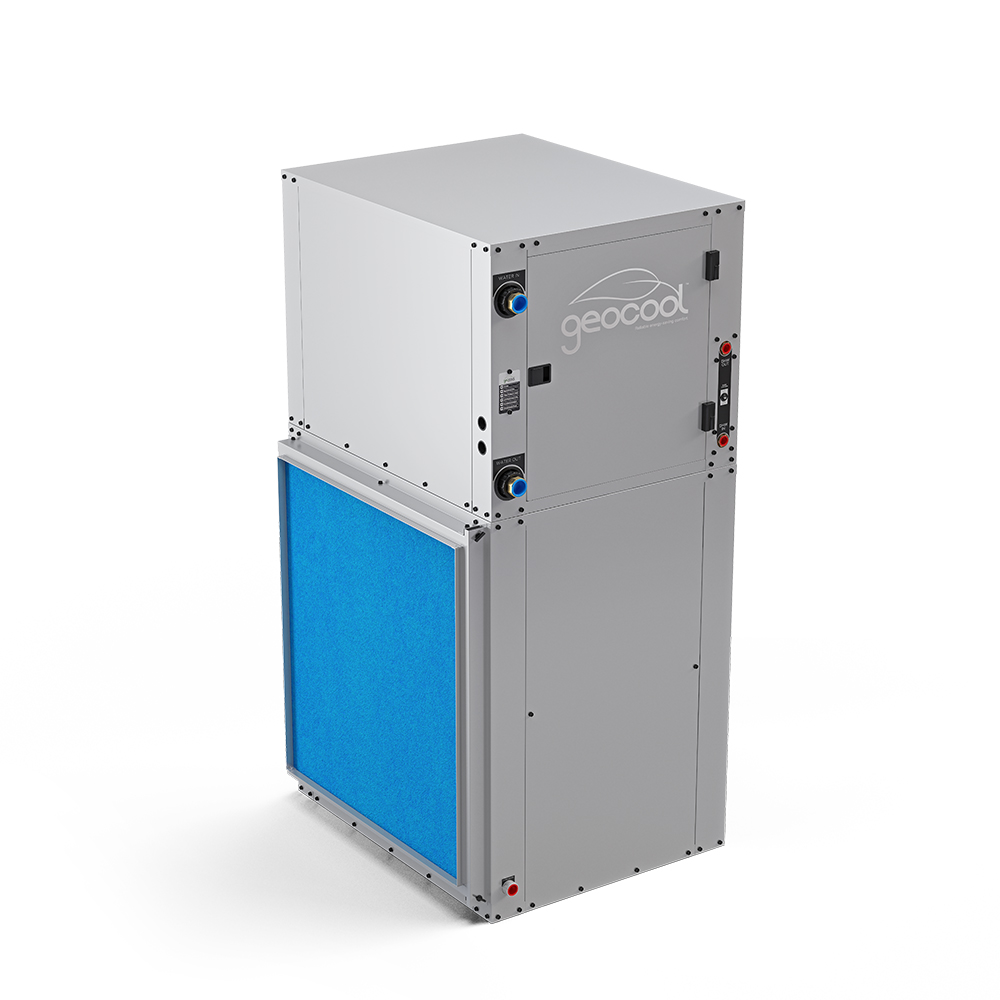

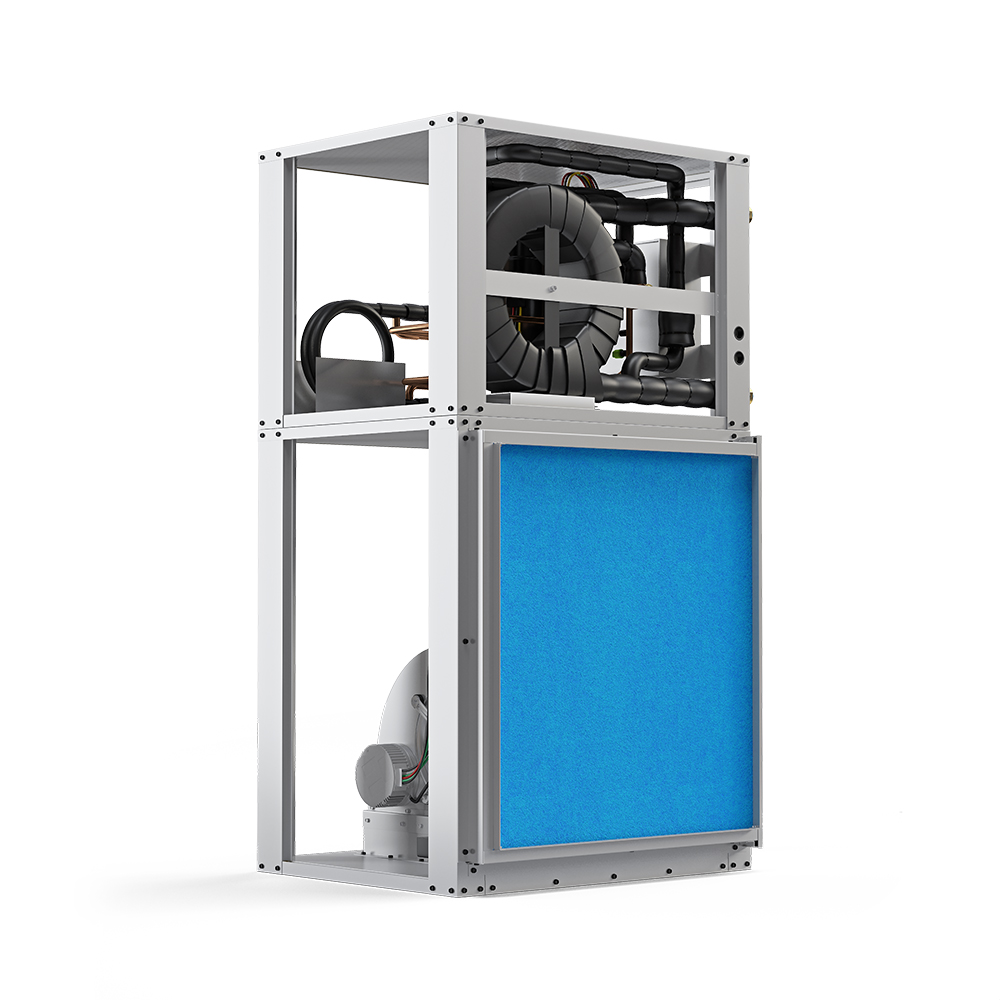

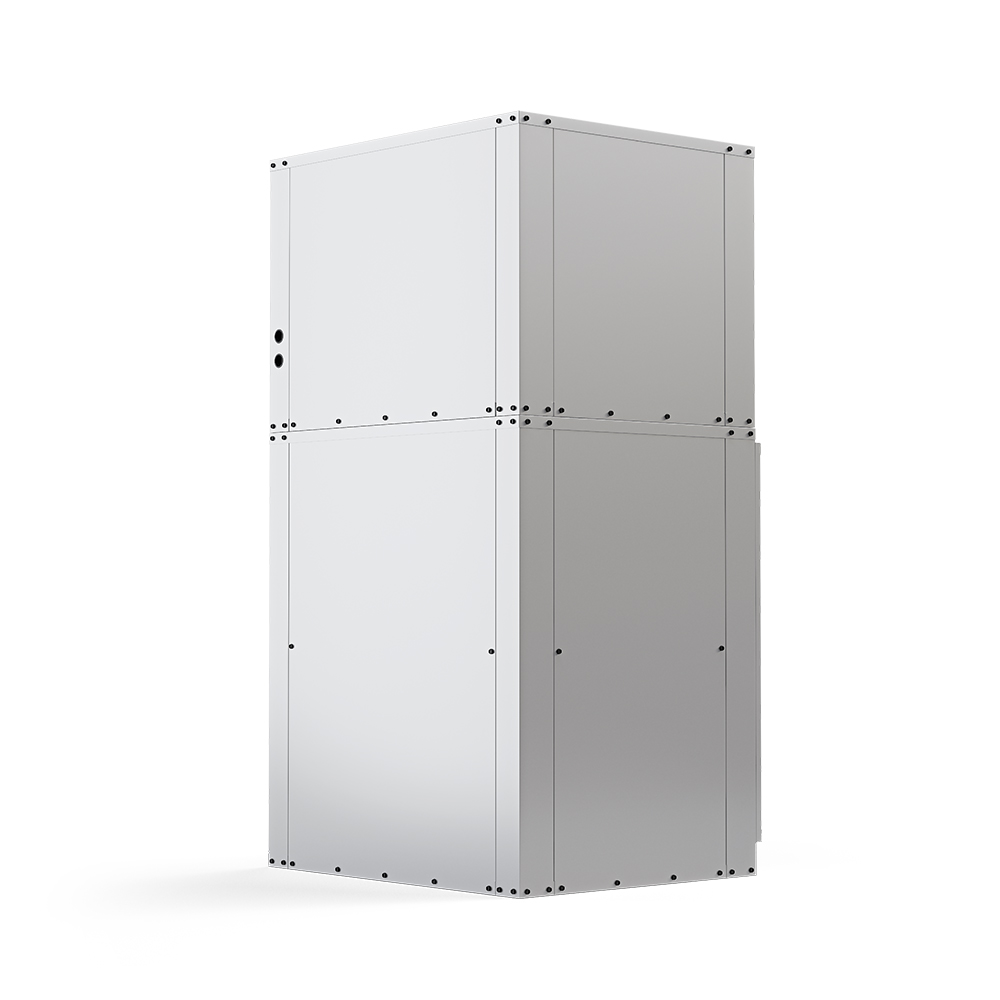

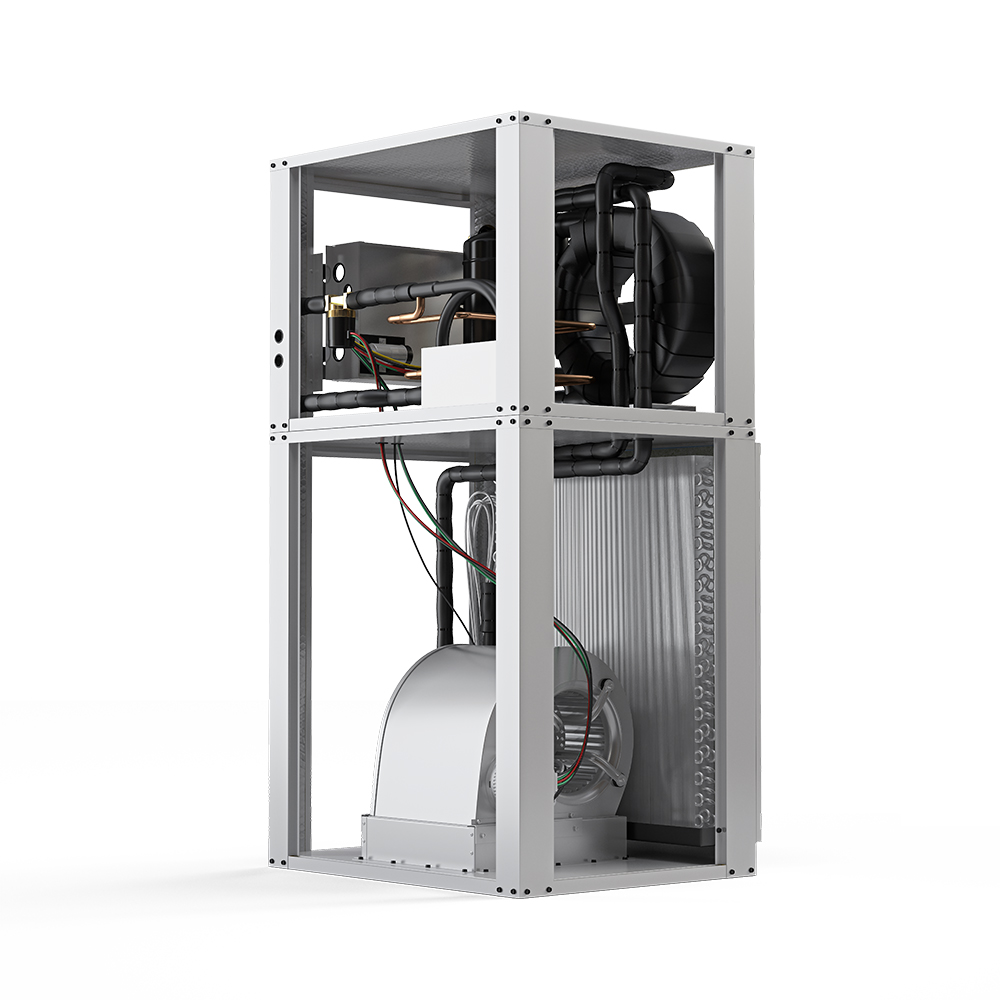

GeoCool GeoCool Heat Pump Downflow : GCHPD048TGTANXL

Description

• Qualifies for federal tax credit, and other incentives
• Highest energy efficiency in its class
• Safety high and low pressure switches
• Quiet operation
• Full featured sinusoidal eon motor control technology
• Insulated sloped stainless steel drain pan
• Advanced unit control board with diagnostic LEDs
• Double O-ring water connections
• Easy service access,  Optional domestic water pre-heating,  Made in the USA,  10 year compressor warranty

UPC: 818545022728
country_of_origin: USA

WARRANTIES:

registered_warranty:10 year registered parts limited warranty & 10 year compressor warranty
base_warranty:5 year limited parts warranty
registered_parts_warranty:
base_parts_warranty:
registered_compressor_warranty:
base_compressor_warranty:
registered_heat_exchanger_warranty:
base_heat_exchanger_warranty:
registered_remote_warranty:
base_remote_warranty:
registered_labor_warranty:
base_labor_warranty:

TECHNICAL SPECIFICATIONS: (blank value means does not apply or not available)

Accessory_Type: NA
cased: NA
configuration: Left Return Downflow
works_with:
seer:
seer2:
max_seer:
eer: Ground Water (FULL) 26.00 / Ground Loop (FULL) 16.65
eer2:
eer_part_load: Ground Water (PART) 33.00 / Ground Loop (PART) 24.06
cop_47: Ground Water (FULL) 4.90 / Ground Loop 4.00 (FULL)
cop_47_part_load: Ground Water (PART) 5.00 / Ground Loop 4.50 (PART)
hspf: Ground Water Fluid Flow Rate | COOLING: (PART) 11 – 12 (FULL) / HEATING: (PART) 11 – 12 (FULL)
hspf2:
afue: Ground Loop Fluid Flow Rate | COOLING: (PART) 11 – 12 (FULL) / HEATING: (PART) 11 – 12 (FULL)
cfm: COOLING (PART) 1550 – 1850 (FULL) / HEATING (PART) 1500 – 1750 (FULL)
tonnage: 4
cooling_capacity: Ground Water (PART) 41000 – 56000 (FULL) / Ground Loop (PART) 38000 – 50000 (FULL)
heating_capacity: Ground Water (PART) 34500 – 50000 (FULL) / Ground Loop (PART) 38000 – 50000 (FULL)
fuel_type:
btu_input:
btu_output:
voltage: 230   phase: 1
cycle: 60
stage: Two-Stage
max_fuse_breaker: 57.9(W/O Desupe
min_circuit_ampacity: 35.2(
mount_type:
color: Gray
color_family: Gray
rated_load:
full_load:
max_coverage_area: 2000
zone_capacity:
refrigerant_type: R-410A
refrigerant_volume:
decibel_rating:
decibel_rating_low:
decibel_rating_high:
air_flow_direction:
number_of_speeds:
oscillation:
number_of_burners:
inverter:
min_ambient_cool:
min_ambient_heat:
drain_connection_size:
gas_connection_size:
lineset_included:
line_set_length:
max_lineset_length:
lineset_fitting_type:
liquid_line_fitting:
liquid_line_size:
suction_line_fitting:
suction_line_size:
control_type:
compressor_motor_type: Scroll
condenser_fan_motor_type:
condenser_fan_motor_hp:

condenser_fan_motor_rpm:
blower_motor_type: Axial Flux (No Shaft) BLA
blower_motor_hp: 4-Mar
blower_motor_speeds:
blower_motor_rpm:
filter_type: Replaceable
filter_size:
heat_exchanger_type:
ignition_type:
vent_connector:
metering_device:
auxiliary_heater_included:
auxiliary_heater_available:
auxiliary_heater_sizes:
lp_kit_included:
lp_kit_available:
low_voltage_compensation:
overload_protection:
adjustable_thermostat:
fan_only_option:
quiet_mode:
sleep_mode:
auto_cool:
wifi_compatibility:
app_compatibility:
works_with_ios:
works_with_android:
remote_control_included:
ul_reconized: No
ul_listed: No

csa_listed:
csa_certified:
etl_listed: Yes
etl_certified: No
iso_certified;
leed_certified: No
ashrae_compliant: No
energy_star_compliant: Yes
energy_star_certified: Yes
ahri_certified: Yes
has_batteries: No
contains_electronics: Yes
contains_chemicals: Yes
contains_aerosol: Yes
contains_compressed_gas: Yes
proposition_65_warning: Yes
restricted_states: No
net_depth: 32
net_height: 60
net_width: 25.75
net_weight: 380
gross_depth:
gross_height:
gross_width:
gross_weight:
condenser_depth:
condenser_height:
condenser_width:
condenser_weight:
air_handler_depth:
air_handler_height:
air_handler_width:
air_handler_weight:
freight_class:85

COPY AND PASTE FOLLOWING MANUAL URLS:

brochure: https://mrcool.com/wp-content/dox_repo/mc-gc-br-en-01.pdf
install_manual: https://mrcool.com/wp-content/dox_repo/mc-gc-im-en-fr-01.pdf
specs: https://mrcool.com/wp-content/dox_repo/mc-gchpd-ss-en-01.pdf
owner_manual: https://mrcool.com/wp-content/dox_repo/mc-gc-im-en-01.pdf
remote_manual:
technical_manual:
service_manual:
warranty_doc: https://mrcool.com/wp-content/dox_repo/mc-gc-wr-en-02.pdf
accessory_manual_1:
accessory_manual_2:
accessory_manual_3:
ahri_certs: https://mrcool.com/wp-content/dox_repo/AHRI/GCHP_V_H_D_048_Certs.pdf
